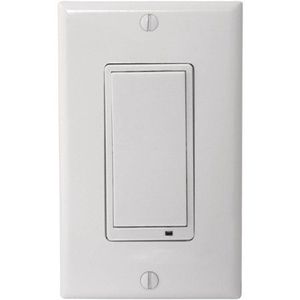

Linear WT00Z-1 Z-Wave(R) 3-Way Wall-Mount Dimmer Switch Electronic Consumer Electronics

today we're installing a linear WT zero zero Z this is a three wave wall mount dimmer switch that enables you to remotely turn on/off or dim other associated devices before starting any project you should make sure that the power is turned off at the breaker box so there is no safety hazard whatsoever inside the junction box remember in a multi gang situation there may be more than one breaker for the box so be sure to check test the circuit to ensure the power is off to begin installation of the WT 0 0 Z remove the existing wall plate and switch capping the black hot wire with the wire nut for safety and identification purpose later in the installation the 3-way dimmer switch comes with pre stripped wires for your convenience the white wire is the neutral the black wire is hot and the green wire is the ground the circuit in your home may have a red Traveler wire however the WT 0 0 z do
