Description
Main features:
1/3" PC1099 CMOS Sensor.
900TVL resolution.
IR-CUT filter.
4mm/F 1.2 Lens.
98ft night vision, 2pcs LEDs Array.
Cable Management Bracket.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-A830D-1099
Resolution: 900TVL
Sensor: 1/3" CMOS Image (PC1099)
Effective pixels: PAL: 976*582; NTSC: 976*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm (BNC Connector)
Scanning Area: 4.9mm*3.7mm
Lens: 4mm/F.1.2
IR Range: 98ft night vision
LEDs: 2pcs LEDs Array
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 78°
Operation temperature: -10ºC ~ 50ºC; 14ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 30mA (250mA with LED on)
Color: White and black
Size: 10.63(L) * 2.76(H) * 3.35(W) inches
Weight: 1.43 pounds
Material: Aluminum
Back Light Compensation (BLC): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/10,000s; NTSC: 1/60s ~ 1/10,000s
Auto Gain Control (AGC): Included
Synchronizing system: Internal
S/N Ratio: >50dB
Gamma correction: 0.45
1/3" PC1099 CMOS Sensor.
900TVL resolution.
IR-CUT filter.
4mm/F 1.2 Lens.
98ft night vision, 2pcs LEDs Array.
Cable Management Bracket.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-A830D-1099
Resolution: 900TVL
Sensor: 1/3" CMOS Image (PC1099)
Effective pixels: PAL: 976*582; NTSC: 976*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm (BNC Connector)
Scanning Area: 4.9mm*3.7mm
Lens: 4mm/F.1.2
IR Range: 98ft night vision
LEDs: 2pcs LEDs Array
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 78°
Operation temperature: -10ºC ~ 50ºC; 14ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 30mA (250mA with LED on)
Color: White and black
Size: 10.63(L) * 2.76(H) * 3.35(W) inches
Weight: 1.43 pounds
Material: Aluminum
Back Light Compensation (BLC): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/10,000s; NTSC: 1/60s ~ 1/10,000s
Auto Gain Control (AGC): Included
Synchronizing system: Internal
S/N Ratio: >50dB
Gamma correction: 0.45

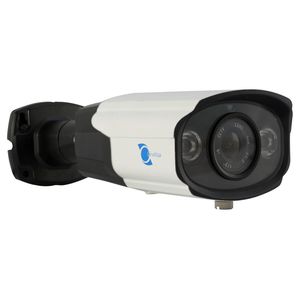

LineMak IR Bullet Camera, 1/3" CMOS Sensor, 900TVL, 4mm Lens, 2pcs LEDs Array, 98ft IR Distance, for DVR or Surveillance Systems.
Current Price
$47.99
Average
$47.99
Min Price
$47.99
Max Price
$47.99
Price dynamics
0%
Description
Main features:
1/3" PC1099 CMOS Sensor.
900TVL resolution.
IR-CUT filter.
4mm/F 1.2 Lens.
98ft night vision, 2pcs LEDs Array.
Cable Management Bracket.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-A830D-1099
Resolution: 900TVL
Sensor: 1/3" CMOS Image (PC1099)
Effective pixels: PAL: 976*582; NTSC: 976*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm (BNC Connector)
Scanning Area: 4.9mm*3.7mm
Lens: 4mm/F.1.2
IR Range: 98ft night vision
LEDs: 2pcs LEDs Array
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 78°
Operation temperature: -10ºC ~ 50ºC; 14ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 30mA (250mA with LED on)
Color: White and black
Size: 10.63(L) * 2.76(H) * 3.35(W) inches
Weight: 1.43 pounds
Material: Aluminum
Back Light Compensation (BLC): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/10,000s; NTSC: 1/60s ~ 1/10,000s
Auto Gain Control (AGC): Included
Synchronizing system: Internal
S/N Ratio: >50dB
Gamma correction: 0.45
1/3" PC1099 CMOS Sensor.
900TVL resolution.
IR-CUT filter.
4mm/F 1.2 Lens.
98ft night vision, 2pcs LEDs Array.
Cable Management Bracket.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-A830D-1099
Resolution: 900TVL
Sensor: 1/3" CMOS Image (PC1099)
Effective pixels: PAL: 976*582; NTSC: 976*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm (BNC Connector)
Scanning Area: 4.9mm*3.7mm
Lens: 4mm/F.1.2
IR Range: 98ft night vision
LEDs: 2pcs LEDs Array
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 78°
Operation temperature: -10ºC ~ 50ºC; 14ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 30mA (250mA with LED on)
Color: White and black
Size: 10.63(L) * 2.76(H) * 3.35(W) inches
Weight: 1.43 pounds
Material: Aluminum
Back Light Compensation (BLC): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/10,000s; NTSC: 1/60s ~ 1/10,000s
Auto Gain Control (AGC): Included
Synchronizing system: Internal
S/N Ratio: >50dB
Gamma correction: 0.45
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
