Description
Main features:
Weatherproof IR camera.
42MIL * 2pcs array IR LED.
98ft ~ 164ft IR distance.
Real day/night feature.
CS Lens 8mm/F1.2.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-CA356X
Resolution: 800TVL
Sensor: 1/3" HD Digital
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm
Lens: 8mm / F1.2
IR Range: 98ft ~ 164ft night vision
LEDs: 2pcs LEDs Array (42 Mil)
IR-CUT Filter: Yes
Minimum illumination: 0.1 Lux (with LED on)
Viewing angle: 40°
Operation temperature: -20°C ~ 50°C; -4ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 500mA
Color: White
Size: 6.70(L) * 2.56(H) * 4.73(W) inches
Weight: 1.22 pounds
Back Light Compensation (BLC): Included
Auto White Balance (AWB): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/100,000s; NTSC: 1/60s ~ 1/100,000s
Auto Gain Control (AGC): Included
Mirror: Included
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: >0.45
Weatherproof IR camera.
42MIL * 2pcs array IR LED.
98ft ~ 164ft IR distance.
Real day/night feature.
CS Lens 8mm/F1.2.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-CA356X
Resolution: 800TVL
Sensor: 1/3" HD Digital
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm
Lens: 8mm / F1.2
IR Range: 98ft ~ 164ft night vision
LEDs: 2pcs LEDs Array (42 Mil)
IR-CUT Filter: Yes
Minimum illumination: 0.1 Lux (with LED on)
Viewing angle: 40°
Operation temperature: -20°C ~ 50°C; -4ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 500mA
Color: White
Size: 6.70(L) * 2.56(H) * 4.73(W) inches
Weight: 1.22 pounds
Back Light Compensation (BLC): Included
Auto White Balance (AWB): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/100,000s; NTSC: 1/60s ~ 1/100,000s
Auto Gain Control (AGC): Included
Mirror: Included
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: >0.45

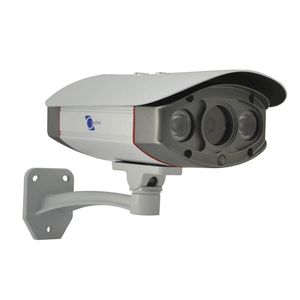

LineMak IR Bullet Camera, 1/3" HD Digital Sensor, 800TVL, 8mm Lens, 2 LEDs Array, 98ft ~ 164ft IR Night Vision, IR-Cut Filter, for DVR or Surveillance Systems.
Current Price
$59.99
Average
$59.99
Min Price
$59.99
Max Price
$59.99
Price dynamics
0%
Description
Main features:
Weatherproof IR camera.
42MIL * 2pcs array IR LED.
98ft ~ 164ft IR distance.
Real day/night feature.
CS Lens 8mm/F1.2.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-CA356X
Resolution: 800TVL
Sensor: 1/3" HD Digital
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm
Lens: 8mm / F1.2
IR Range: 98ft ~ 164ft night vision
LEDs: 2pcs LEDs Array (42 Mil)
IR-CUT Filter: Yes
Minimum illumination: 0.1 Lux (with LED on)
Viewing angle: 40°
Operation temperature: -20°C ~ 50°C; -4ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 500mA
Color: White
Size: 6.70(L) * 2.56(H) * 4.73(W) inches
Weight: 1.22 pounds
Back Light Compensation (BLC): Included
Auto White Balance (AWB): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/100,000s; NTSC: 1/60s ~ 1/100,000s
Auto Gain Control (AGC): Included
Mirror: Included
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: >0.45
Weatherproof IR camera.
42MIL * 2pcs array IR LED.
98ft ~ 164ft IR distance.
Real day/night feature.
CS Lens 8mm/F1.2.
AWB support function: high color reproduction and real image.
BLC support function: suitable for objects monitoring under backlight environment.
AES support function: adapt to different monitoring environment.
AGC support function: adaptive brightness.
Specifications:
Brand: LineMak
Model: LS-CA356X
Resolution: 800TVL
Sensor: 1/3" HD Digital
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm
Lens: 8mm / F1.2
IR Range: 98ft ~ 164ft night vision
LEDs: 2pcs LEDs Array (42 Mil)
IR-CUT Filter: Yes
Minimum illumination: 0.1 Lux (with LED on)
Viewing angle: 40°
Operation temperature: -20°C ~ 50°C; -4ºF ~ 122ºF
Power supply: DC 12V
Power consumption: 500mA
Color: White
Size: 6.70(L) * 2.56(H) * 4.73(W) inches
Weight: 1.22 pounds
Back Light Compensation (BLC): Included
Auto White Balance (AWB): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/100,000s; NTSC: 1/60s ~ 1/100,000s
Auto Gain Control (AGC): Included
Mirror: Included
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: >0.45
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
before you buy your infrared to see if it camera do you check if it has I hear the infrared cuts removable if you want to understand more about icy air just keep watching hello welcome to my channel called the mirror again with another video let's talk about ICR the infrared cutter removable for CCTV camera especially if you want to use your camera during the night with infrared illumination you must understand what is I see alright but don't forget also to subscribe to the channel hit the thumbs up and leave your comments ok so let's take a look at the video all right let's talk about infrared cut removable something very very important for your CTV camera especially if you are using on an outdoor installation you have a lot of sunlight during the day and during the night is dark you need to use infrared illumination and then if you have an infrared cut removable camera it's much much
