Description
Main features:

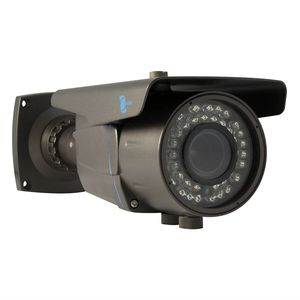

Metal IR waterproof bullet camera.
2.8~12 mm Varifocal lens.
42pcs 5mm IR LEDs, 131ft IR distance.
AWB support function: high color reproduction and real image.
AES support function: adapt to different monitoring environment.
Specifications:
Brand: LineMak
Model: LS-VE8041PA-OSD
Resolution: 800TVL
Sensor: 1/3" Panasonic High Resolution Color CCD
Effective pixels: PAL: 960*582; NTSC: 967*492
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm (BNC connector)
Lens: 2.8mm~12mm / F1.2 Varifocal
IR Range: 131ft night vision
LEDs: 42pcs (5mm each)
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 25° ~ 115°
Operation temperature: -10°C ~ 50°C; 14ºF ~ 122ºF
Storage temperature: -30°C ~ 80°C; -22ºF ~ 176ºF
Power supply: DC 12V
Power consumption: 500mA
Color: Dark gray
Size: 10.63(L) * 3.15(H) * 3.75(W) inches
Weight: 1.6 pounds
Auto White Balance (AWB): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/100,000s; NTSC: 1/60s ~ 1/100,000s
Synchronizing system: Internal
S/N Ratio: >50dB
OSD Menu: Included
Metal IR waterproof bullet camera.
2.8~12 mm Varifocal lens.
42pcs 5mm IR LEDs, 131ft IR distance.
AWB support function: high color reproduction and real image.
AES support function: adapt to different monitoring environment.
Specifications:
Brand: LineMak
Model: LS-VE8041PA-OSD
Resolution: 800TVL
Sensor: 1/3" Panasonic High Resolution Color CCD
Effective pixels: PAL: 960*582; NTSC: 967*492
Video format: PAL / NTSC
Video output: 1.0Vp-p, 75ohm (BNC connector)
Lens: 2.8mm~12mm / F1.2 Varifocal
IR Range: 131ft night vision
LEDs: 42pcs (5mm each)
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 25° ~ 115°
Operation temperature: -10°C ~ 50°C; 14ºF ~ 122ºF
Storage temperature: -30°C ~ 80°C; -22ºF ~ 176ºF
Power supply: DC 12V
Power consumption: 500mA
Color: Dark gray
Size: 10.63(L) * 3.15(H) * 3.75(W) inches
Weight: 1.6 pounds
Auto White Balance (AWB): Included
Electronic shutter speed (AES): PAL: 1/50s ~ 1/100,000s; NTSC: 1/60s ~ 1/100,000s
Synchronizing system: Internal
S/N Ratio: >50dB
OSD Menu: Included
Linemak IR Bullet Camera, 1/3" Panasonic CCD Sensor, 800TVL, 2.8-12mm varifocal Lens, 42 LEDs, 131ft IR Night Vision, for Office or Warehouse Security.
