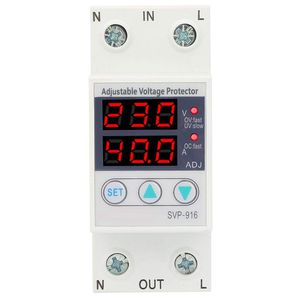

Specification:
Condition: 100%
Brand newRated voltage
30VAC 50/60Hz
Rated voltage
1-63A adjustable(default 63A)/1-40A adjustable(default40A)
Overvoltage protection value range
221V-300V-OFF adjustable(default 280V)
Overvoltage recovery voltage mediation range
220V-299V(default value 250V)
Overvoltage protection action time
0.1s - 10s (default 0.1 seconds)
Undervoltage protection value range
219V-150V-OFF adjustable(default 160V)
Undervoltage recovery voltage mediation range
151V-220V( default value 180V)
Undervoltage protection action time
0.1s - 10s (default 0.1 seconds)
Overcurrent regulation range
1-63A (default 63A)/1-40A(default40A)
Overcurrent action range
0.1s -512s (default5.0 seconds)
Failure recovery delay time
2s - 512s (default 60 seconds)
Power-on delay time
2s - 255s (default 2 seconds)
Power consumption
≤2W
Electrical mechanical life≥4000 times
Installation method
DIN rail
Working environment
Temperature:-25℃ ~+40℃
Humidity:<90%
Altitude: no more than 2000m
Size: Approx. 81 x 36 x 60mm / 3.2 x 1.4 x 2.4in
Optional Style: 40A, 63A

Package List:
1 x Protector

Note:
1. The line conductor should meet the relevant current standard value and the load current cannot be greater than the maximum protection current value of the protector.
2. The neutral line N cannot be connected incorrectly and needs to be secure. The zero line N of the protector is directly connected, and there is no disconnect function.
3. After the product is powered on, do not touch the live parts to avoid electric shock.
