Description
Standby current:60uA
IR flash:940nm(55degree wide angle lens flashes18meters/59feet)
External button control box with display screen:(2.4'');960(RGB)*240DOT;16.7M Color,6keys
Memory card:8MB~32GB
Video resolution:1440x1080:15fps;1280x720:30fps;640x480fps
Main PIR sensing angle: 35°
Video length:1-60sec,programmable
Playback zoom in:1-16 times
4G send options:MMS E-mail,FTP,Close 4G=does not send MMS/Email/FTP;Programmable
External DC power supply:Plug size:4.0mm*1.7mm; DC6~12V(2~1A)
Standby current:0.06mA
Auto power off:in 3 minutes without any operation in TEST mode
Power consumption:180mA(+620mA when 940nm IR LED lights up)
Working humidity:5%-95%
Certificate:FCC&CE&RoHS
4G supports the frequency bands as below:
E-H module(variant for EMEA): 4G LTE-FDD: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz),
4G LTE-TDD: B38(2600MHz), B40(2300MHz)
SA-H module(Variant for Australia/New Zealand/South America): 4G LTE-FDD: B1(2100MHz), B3(1800MHz), B7(2600MHz),B8(900MHz), B20(800MHz),
4G LTE-TDD: B40(2300MHz)
A-H module: 4G LTE-FDD: B2, B4, B12
Package content
Digital camera x1
External button control box with display screen
TV AV IN cable
USB cable
Strap x1
External DC power cable(optional) x1
CD X1
Warranty card x1
User's manual

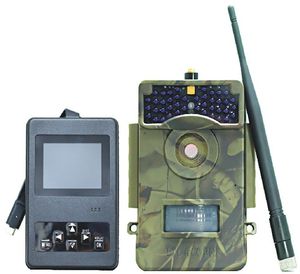

Ltl Acorn Low Power 4G GPRS Scouting Camera 12MP 1080P HD IP66 Waterproof Night Vision Animal Trail Detection Camera
Description
Standby current:60uA
IR flash:940nm(55degree wide angle lens flashes18meters/59feet)
External button control box with display screen:(2.4'');960(RGB)*240DOT;16.7M Color,6keys
Memory card:8MB~32GB
Video resolution:1440x1080:15fps;1280x720:30fps;640x480fps
Main PIR sensing angle: 35°
Video length:1-60sec,programmable
Playback zoom in:1-16 times
4G send options:MMS E-mail,FTP,Close 4G=does not send MMS/Email/FTP;Programmable
External DC power supply:Plug size:4.0mm*1.7mm; DC6~12V(2~1A)
Standby current:0.06mA
Auto power off:in 3 minutes without any operation in TEST mode
Power consumption:180mA(+620mA when 940nm IR LED lights up)
Working humidity:5%-95%
Certificate:FCC&CE&RoHS
4G supports the frequency bands as below:
E-H module(variant for EMEA): 4G LTE-FDD: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz),
4G LTE-TDD: B38(2600MHz), B40(2300MHz)
SA-H module(Variant for Australia/New Zealand/South America): 4G LTE-FDD: B1(2100MHz), B3(1800MHz), B7(2600MHz),B8(900MHz), B20(800MHz),
4G LTE-TDD: B40(2300MHz)
A-H module: 4G LTE-FDD: B2, B4, B12
Package content
Digital camera x1
External button control box with display screen
TV AV IN cable
USB cable
Strap x1
External DC power cable(optional) x1
CD X1
Warranty card x1
User's manual
