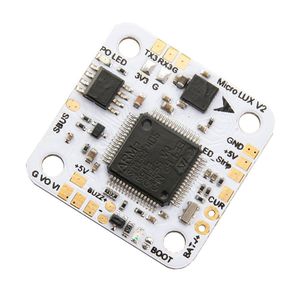

The Lumenier MICRO LUX V2 F4 Flight Controller with OSD brings incredible power and performance to the micro brushless world. It uses a powerful F4 processor along with top of the line hardware. Now you can get all the performance from an F4 based flight controller in a micro size! The V2 now includes an on-board Betaflight OSD. Using an On Screen Display has never been simpler, just drag and drop in the Betaflight Configurator. This flight controller uses 20x20mm mounting holes and a low profile design allowing for smaller airframe designs than ever before. The MICRO LUX V2 comes with BetaFlight pre-installed.

The MICRO LUX supports both SBUS and PPM inputs as well as DSM/DSMX receivers with both 5v and 3.3v support.

• 2-4S Direct Lipo input support (5-16v)
• On-board BetaFlight OSD
• On-board 5v/2A and 3.3v/0.2A regulators
• SBUS and PPM support
• RGB LED dedicated pad, Current Sensor pad and Buzzer Pad
• VBAT Monitoring support
• 3x UART Ports
• Betaflight support (Supports new DSHOT protocol)
• BLHeli passthrough flashing supported by hardware

• STM32F405 (2MB flash) 32-bit processor
• MPU6000 Gyro/Accelerometer
• High quality 1.6mm PCB
• Micro USB connector for programming
• Dimensions: 27x27x6mm (includes USB in height)
• Mounting Holes: 20mm square to center of holes
• Weight: 4g

• 1x Lumenier MICRO Lux V2 F4 Flight Controller w/ OSD
• 1x Set of plastic 5mm and 3mm standoffs + screws / nuts

We suggest the following gear to complete your micro brushless build. (Not included)

• Lumenier Mini BLHeli_S 12A 4-in-1 OPTO ESC DSHOT

• Download Betaflight Configurator - Latest Betaflight Firmware (Load the "VGOODDHF4
