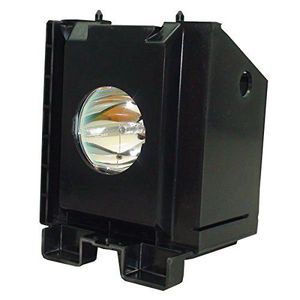

Lutema BP96-01394A-PI Samsung BP96-01394A DLP/LCD Projection TV Lamp - Philips Inside

bulb replacement for Samsung vp9 6-0 0 to 2 for a lamp brought to you by shopjimmy.com visit www.shopjimmy.com replacement bulb a pair of needle-nose pliers a cup to hold your lamp's screws clips and other small items both a flathead and phillips screwdriver and a piece of tape to use as a marker or guide so let's get to it shall we release the lamp plug from the housing by removing the screw that surrounds the plug remove all other housing screws with a screwdriver for this lamp there are only two screws located on two sides of the housing remove the metal handle pull the two pieces of housing apart guiding the lamp plug in wires with the bulb release the bulb from the housing by removing the screws and metal bulb clips make sure to note the locations of Clips orientation of the bulb within the housing and orientation of the wires remove the bulb from the housing before removing the wi
