Replaces Model Number: AL8Z-19G490-A

For use with: Ford Escape + Hybrid (Years 2010-2012), Mercury Mariner (Years 2010-2011) + Hybrid (Year 2010)

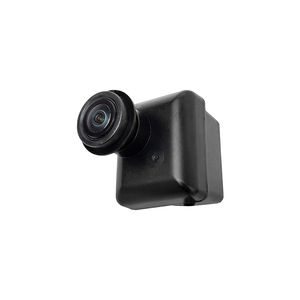

This is an aftermarket backup camera, not OEM. This camera will plug into your existing wire harness. If your vehicle currently does NOT have a backup camera system, this camera will not work. Double Check your part number prior to ordering.

STEP ONE: CALL
Before ordering this item:
First, you need to call the Parts Department of your local dealer to find out your exact Part Number.

STEP TWO: CHECK
Double check your Part Number with our part number to confirm.

• Oftentimes, people buy the wrong camera because they only match the model/year of their car.
• To avoid this, you just need to compare your part number to this one and make sure they match!

STEP THREE: PURCHASE
Once you complete steps ONE and TWO, and confirmed a match, you can purchase this camera without having to worry about whether or not it will work for your vehicle!

NSF Certified
All of our OEM Replacement Cameras are NSF.org Certified.

Camera Specs:

• Image sensor : 1/3" Sony CCD Chip
• Signal System : NTSC/PAL
• Effective Pixel : 728 x 582
• Minimum Illumination : 0.5 Lux
• Electronic Shutter : 1/50 to 1/100,000 seconds
• Resolution : 600 TV lines
• Angle : 170 Degrees
• Waterproof Rate : IP68
• Power : DC 12V
• Video Cable: 11.75 inches

OE CAMERAS BACKED BY A 1 YEAR WARRANTY!!!
