Description

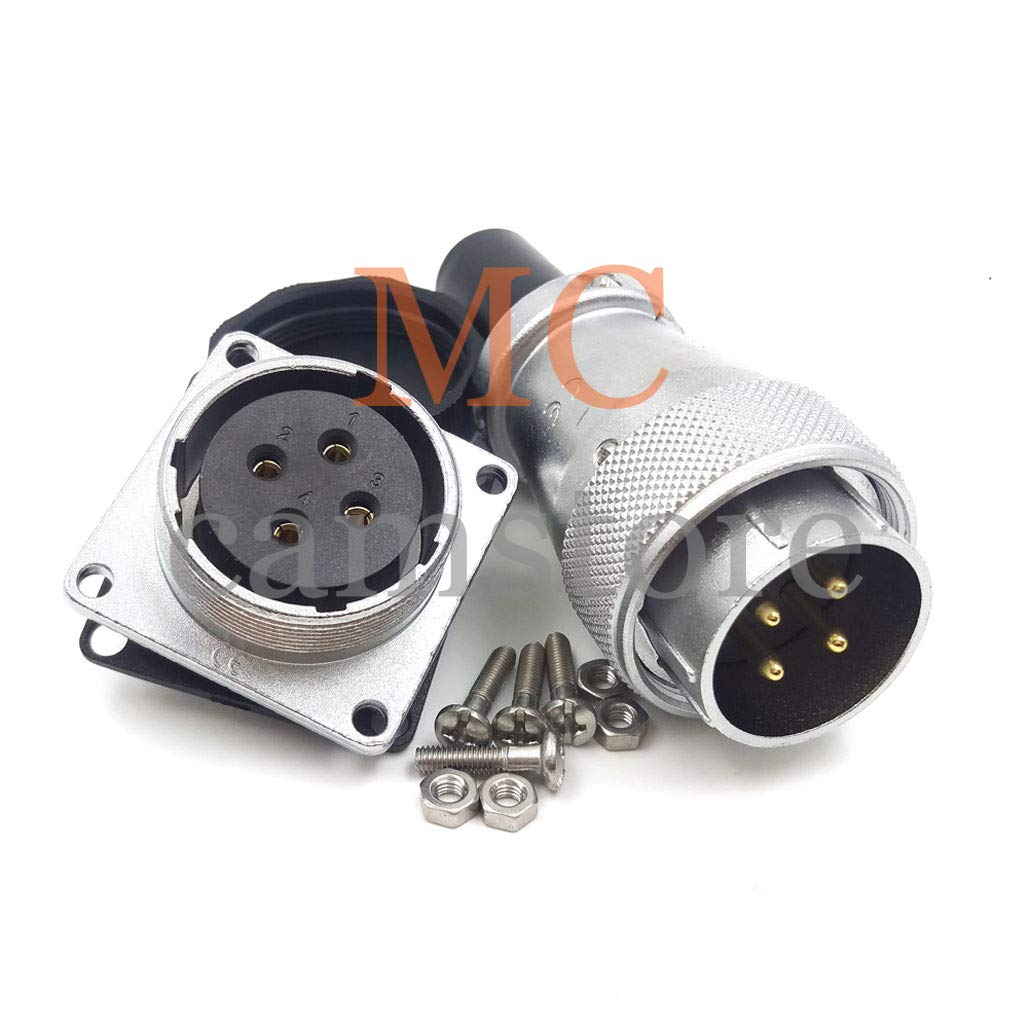

Product name: WS28 4pin power cable connector
Contact: φ2.5mm*4
Current: 25A
Working voltage: 500V.AC
Test voltage: 1500V.AC
Contact resistance: 1.0 Milliohm
insalation resistance: 2000Milliohm
Wire: <2.5mm/AWG13
IP rating: IP44(with waterproof cap on socket)
Coupling: Threaded coupling
Shell material: Zinc alloy with chrome plating
Inset material:PPS(260°max)
Contact material: gold plating copper
Mating cycle: 500times
Temperature range: -25~+85°C
Pin number availalble:2/3/4/7/9/10/12/16/17/20/24/26 pin
Max cable diameter: 15.7mm
Shipping including: plug*1, socket*1, waterproof cap*1, screw*4set
Contact: φ2.5mm*4
Current: 25A
Working voltage: 500V.AC
Test voltage: 1500V.AC
Contact resistance: 1.0 Milliohm
insalation resistance: 2000Milliohm
Wire: <2.5mm/AWG13
IP rating: IP44(with waterproof cap on socket)
Coupling: Threaded coupling
Shell material: Zinc alloy with chrome plating
Inset material:PPS(260°max)
Contact material: gold plating copper
Mating cycle: 500times
Temperature range: -25~+85°C
Pin number availalble:2/3/4/7/9/10/12/16/17/20/24/26 pin
Max cable diameter: 15.7mm
Shipping including: plug*1, socket*1, waterproof cap*1, screw*4set
MCCAMSTORE WEIPU WS28 4pin Panel Mount High Voltage Power Cable Connector, Aviation Circular Industrial Plug Socket, Automotive Bulkhead Solder Connector (4 pin, Panel Mount)
Current Price
$16.99
Average
$16.99
Min Price
$16.99
Max Price
$16.99
Description
Product name: WS28 4pin power cable connector
Contact: φ2.5mm*4
Current: 25A
Working voltage: 500V.AC
Test voltage: 1500V.AC
Contact resistance: 1.0 Milliohm
insalation resistance: 2000Milliohm
Wire: <2.5mm/AWG13
IP rating: IP44(with waterproof cap on socket)
Coupling: Threaded coupling
Shell material: Zinc alloy with chrome plating
Inset material:PPS(260°max)
Contact material: gold plating copper
Mating cycle: 500times
Temperature range: -25~+85°C
Pin number availalble:2/3/4/7/9/10/12/16/17/20/24/26 pin
Max cable diameter: 15.7mm
Shipping including: plug*1, socket*1, waterproof cap*1, screw*4set
Contact: φ2.5mm*4
Current: 25A
Working voltage: 500V.AC
Test voltage: 1500V.AC
Contact resistance: 1.0 Milliohm
insalation resistance: 2000Milliohm
Wire: <2.5mm/AWG13
IP rating: IP44(with waterproof cap on socket)
Coupling: Threaded coupling
Shell material: Zinc alloy with chrome plating
Inset material:PPS(260°max)
Contact material: gold plating copper
Mating cycle: 500times
Temperature range: -25~+85°C
Pin number availalble:2/3/4/7/9/10/12/16/17/20/24/26 pin
Max cable diameter: 15.7mm
Shipping including: plug*1, socket*1, waterproof cap*1, screw*4set
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
