Description
160W AC-DC Single Output Desktop Power Supply 24 Volts 6.67 Amps Features • Output Connector: 4-Pin DIN • Universal AC input / Full range • 3 pole AC inlet IEC320-C14 • Built-in active PFC function, PF>0.95 • Protections: Short circuit / Overload / Over voltage / Over temperature • Fully enclosed plastic case • Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE • Class power ( with earth pin) • LED indicator for power on • No load power consumption • Meet EISA 2007(Energy Independence and Security Act) • 2 years warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 6.67 • Maximum Output Power (W): 160 • AC Power Cord: NOT INCLUDED, RECOMMEND 38050 • Family: GS160 • Input Voltage (VAC): 85 to 264 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.85 • Output Connector Type: DIN Male • Output Connector Diameters: 4-pin DIN • Number of Outputs: 1 • Product Type: AC to DC Power Supply • MFR Product Family: GS160A • Efficiency (%): 92.5 • Minimum Isolation Voltage: 3000 • Operating Temperature-Min (Cell): -30 • Operating Temperature-Max (Cell): 70 • Length (inch): 6.9 • Width (inch): 2.8 • Height (inch): 1.4 • Agency Approvals: UL/TUV/BSMI/CCC • Type: Auto Switching • Style: Desktop Adapter • Product Note: Level V.

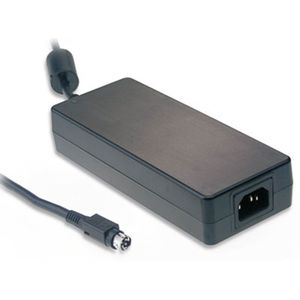

MEAN WELL GS160A24-R7B 160W AC-DC Single Output Desktop Power Supply 24V
Current Price
$124.24
Average
$65.35
Min Price
$45
Max Price
$124.24
Price dynamics
47%
Description
160W AC-DC Single Output Desktop Power Supply 24 Volts 6.67 Amps Features • Output Connector: 4-Pin DIN • Universal AC input / Full range • 3 pole AC inlet IEC320-C14 • Built-in active PFC function, PF>0.95 • Protections: Short circuit / Overload / Over voltage / Over temperature • Fully enclosed plastic case • Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE • Class power ( with earth pin) • LED indicator for power on • No load power consumption • Meet EISA 2007(Energy Independence and Security Act) • 2 years warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 6.67 • Maximum Output Power (W): 160 • AC Power Cord: NOT INCLUDED, RECOMMEND 38050 • Family: GS160 • Input Voltage (VAC): 85 to 264 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.85 • Output Connector Type: DIN Male • Output Connector Diameters: 4-pin DIN • Number of Outputs: 1 • Product Type: AC to DC Power Supply • MFR Product Family: GS160A • Efficiency (%): 92.5 • Minimum Isolation Voltage: 3000 • Operating Temperature-Min (Cell): -30 • Operating Temperature-Max (Cell): 70 • Length (inch): 6.9 • Width (inch): 2.8 • Height (inch): 1.4 • Agency Approvals: UL/TUV/BSMI/CCC • Type: Auto Switching • Style: Desktop Adapter • Product Note: Level V.
