Description

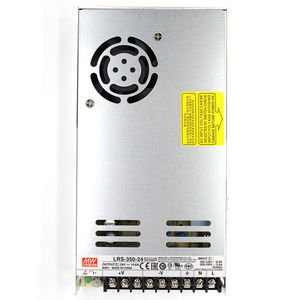

MEAN WELL LRS Series LRS-350-24 is a 350W 24V Switching Power Supply, be used as 3D Printer Power Supply and Industrial Power Supply.
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 0.5%
Maximum Input Current (A): 6.8(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30
Package Length: 215
Package Width: 115
PCB changed: 9
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 0.5%
Maximum Input Current (A): 6.8(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30
Package Length: 215
Package Width: 115
PCB changed: 9
MEAN WELL LRS-350-24 AC/DC Switching Power Supply 350.4W 24V 14.6 Amp Single Output (LRS Series 350W 24V SMPS)
Price is below average
Current Price
$29.99
Average
$31.39
Min Price
$29.99
Max Price
$33.25
Price dynamics
4%
Description
MEAN WELL LRS Series LRS-350-24 is a 350W 24V Switching Power Supply, be used as 3D Printer Power Supply and Industrial Power Supply.
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 0.5%
Maximum Input Current (A): 6.8(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30
Package Length: 215
Package Width: 115
PCB changed: 9
EU RoHS: Compliant
ECCN (US): EAR99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 24
Output Current (A): 14.6
Output Power (W): 350.4
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 0.5%
Maximum Input Current (A): 6.8(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 88(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 760
Pin Count: 9
Mounting: Chassis
Package Height: 30
Package Length: 215
Package Width: 115
PCB changed: 9
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
