Features:

1 Find locator: Choose find locator, confirm the command when the device is in normal network connection, will make a sound, easy to find the locator.

2. Small size design : 20mm (Radius) x 12mm (Thickness), very easy for carring.

3. 400mAh backup battery, can standby 4 days

Specification:

1.Hardware Specifications

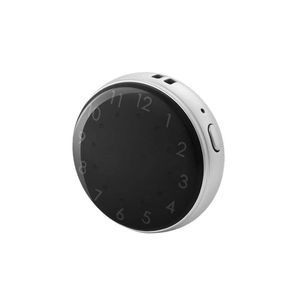

Product type:Mini GPS tracker A12

Whole machine size:40 X 12mm; Weight:25g;Colors:Black, White

Buttons：Power Button/SOS button

Time Display:LED indicator light

GPS Antenna:High sensitive ceramics active antenna

GSM Antenna:Four frequency PIFA antenna

Battery:400mAh

G-sensor:Support

I/O Port:USB charge port

Chip:MTK MT2503

GPRS:Class12

GPS Signal:L1, 1575.42MHz C/A

GPS Channel Number:22 Channels

GPS Chip Receive:Tracking Sensitivity: -165dBm, capture

GPS Location Accuracy:5-15m

LBS Location Accuracy:100-1000m

Minimum Standby Current:Less than 0.5mA;Average standby Current:Less than 2.5mA;Average working Current:About 55mA

Working Temperature:-20～70℃

Working Humidity：5% to 95% non-congealable

Microphone:Support2.Software Specifications

Support operate system：Support 2.3 and above system, IOS5.0 and above

Call Functions：SOS call ,voice monitoring，whitelist do not disturb mode

Language Support：Simplified Chinese, English

Positioning：GPS+BD+WIFI+LBS multi-mode positioning

Support AGPS：Cool start 26 seconds positioning

One key emergency：SOS one button emergency call ,auto-dialing

Smart Geo-fence：Can automatic alarm when out of range

Historical route：Can check three months' historical route

Wireless upgrading：Software remote upgrading, remote debugging maintenance , remote setting parameters

Packing List:1X GPS Tracker A12;1X USB Charge Cable;1X String;1X User Manual
