Description
Note:
The device needs to use a 2G card for 850 / 900 / 1800 / 1900MHz, not support 3G/4G, we don't offer SIM card
Some SIM cards need to set APN before access to GPS signal, you can contact us about how to set APN
Features:
Link to Google map
Real time tracking
SMS/APP/Web tracking
Free APP for IOS Android device
Free tracking platform, multi language menu
History route view and geo-fence
Over-speed, low battery alarm
How to work it?
1. Insert SIM card
Check if the device has GPRS signal (Yellow light flashes) and GPS signal (Blue light flashes).
No signal maybe there 3 situations.
The card is not inserted and readed (re insert).
Hadn't use correct GSM SIM card.
There is no GPS signal in the room (try again outside).
2. Download APP
Search TKSTAR GPS in App store, or scan the QR code in the manual.
If the location is wrong or GPS is offline, it needs to set APN.
3. Set APN
Find APN information of SIM card: apnname, apnusename, apnpassword.
Send 4 messages to SIM card.
For example, if you get following information:
Apn name: A
Apn username: B
Apn password: C
Send messages to SIM card,
1.gprs123456
2.apn123456 A (There is a space in front of A)
3.apnusename123456 B (B also)
4.apnpassword123456 C (C also)
Specification:
Dimension: 2"x 1.1"x 0.8"
Weight: 1.3oz/38g
Network: GSM/GPRS
GPS sensitivity: -159dBm
GPS accuracy: 16ft-32ft/5-10m
Wall charger: 110-220V input, 5V output
Battery capacity: Chargeable changeable 3.7V 1000mAh Li-ion battery
Standby time: 15days
Standby mode power: 1.9mAh/h
Continuous positioning mode power (Upload positioning data to the platform every minute): 44.2mAh/h
Package list:

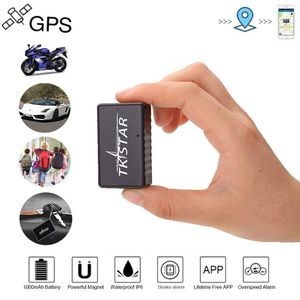

1x Vehicle GPS tracker
1x USB cable
1x User manual
