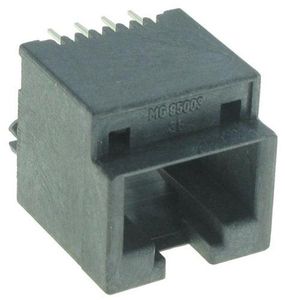

Modular Connectors / Ethernet Connectors VERT PCB 8/8 RJ45 SMALL PANEL CUTOUT (10 pieces)

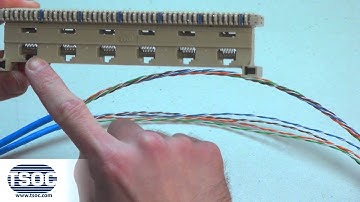

how to terminate a 6 port rj45 bix 46di modular distribution connector you'll need the following materials impact termination tool 100 pair distribution frame the cable prep tool the cable prep tool 6 port rj45 modular distribution connector 4-inch nylon cable ties needle nose pliers 4-pair cat-5e utp solid cable blue step 1 cut the specified length of cable and insert into the cable prep tool rotate in one direction one to two turns to score the cable jacket step two remove the jacket exposing the eight insulated conductors and a nylon thread pull string use the needle nose pliers and pull string and expose the required length of wire step 3 place the nylon cable ties into the slots of the 6 port rj45 modular distribution connector place the exposed utp cables along the top of the distribution connector with the modular connectors facing down and secure the cable ties step 4 install th
