Description

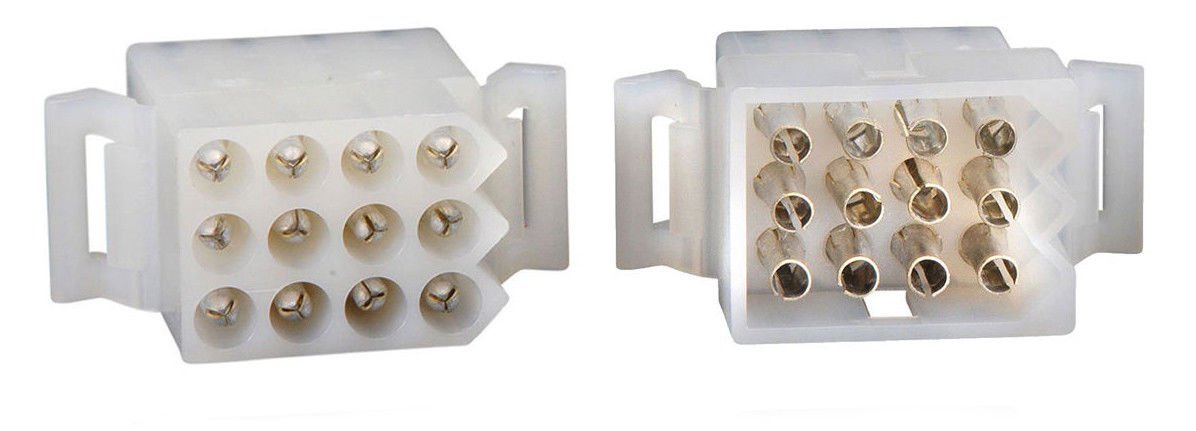

Molex: .093" 12 Circuits Power Connector Male Female w/Terminal.
Overview Standard .093" pin and socket power connectors from Molex provide a flexible design choice for medium-power applications.
Molex's Standard .093" pin and socket power connectors are an industry standard connector system based on an .093" pin diameter. Molex's 2.36mm diameter terminals are used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 products.
The terminals can be used in either crimp housings or crimp receptacles and are capable of carrying up to 14.0A (9.0A with the largest circuit size housings; 17.0A with high-current/low-force terminals). The system is available in wire-to-wire and wire-to-board configurations, up to 15 circuits.
Item Specification: 0.093" 12 Circuits w/18-22 AWG:
Circuits (maximum)12
Circuits Detail4x3
Maximum per Contact 14.0A
Natural Flammability 94V-2
Mating Interface 5.03mm
Temperature Range - Operating -40°C to +105°C
Terminal Wired Applicable wires: 18-22 AWG
Low-Halogen (Pins & Socket)
Pro Kit Contents:
Qty: 1 - Molex, 12-Circuits Plug
Qty: 1- Molex, 12-Circuits Circuits Receptacles.
Qty: 12 - Molex, Male Crimp Pins Standard .093" 18-22 AWG (2 more extra Pins)
Qty: 12 - Molex, Female Crimp Sockets Standard .093" 18-22 AWG ( 2 more extra Pins)
Terminals in Strip/Reel Packaging. ( Please view the image for more detail).
Benefits Strip/Reel Terminals:
Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you.
Overview Standard .093" pin and socket power connectors from Molex provide a flexible design choice for medium-power applications.
Molex's Standard .093" pin and socket power connectors are an industry standard connector system based on an .093" pin diameter. Molex's 2.36mm diameter terminals are used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 products.
The terminals can be used in either crimp housings or crimp receptacles and are capable of carrying up to 14.0A (9.0A with the largest circuit size housings; 17.0A with high-current/low-force terminals). The system is available in wire-to-wire and wire-to-board configurations, up to 15 circuits.
Item Specification: 0.093" 12 Circuits w/18-22 AWG:
Circuits (maximum)12
Circuits Detail4x3
Maximum per Contact 14.0A
Natural Flammability 94V-2
Mating Interface 5.03mm
Temperature Range - Operating -40°C to +105°C
Terminal Wired Applicable wires: 18-22 AWG
Low-Halogen (Pins & Socket)
Pro Kit Contents:
Qty: 1 - Molex, 12-Circuits Plug
Qty: 1- Molex, 12-Circuits Circuits Receptacles.
Qty: 12 - Molex, Male Crimp Pins Standard .093" 18-22 AWG (2 more extra Pins)
Qty: 12 - Molex, Female Crimp Sockets Standard .093" 18-22 AWG ( 2 more extra Pins)
Terminals in Strip/Reel Packaging. ( Please view the image for more detail).
Benefits Strip/Reel Terminals:
Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you.
Molex (12-Circuits) Male & Female Receptacle Plug, w/Terminal sockets w/18-22 AWG Standard .093" Pins, Pitch 5.06mm
