Description
Cat6a Class Ea RJ45 Field Assembly Plug UTP & FTP Easy Assembly terminate in field in minutes without special tools Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0. 46 to 0. 76 mm Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0. 4 to 0. 76 mm Transmission Characteristics: Cat6a per IS0/IEC 11801 Ed. 2. 2: 2011-06 Complies with class Ea to ISO/EIC 11801 Ed. 2. 2. 2011-06, DIN EN 50173-1: 2011-09 10 Gbit IEEE 802. 3an Supports Power over Ethernet (PoE, PoE plus, and UPoE) Compatible with Cable Jacket Diameters from 6 to 9. 5 mm Adjustable Strain Relief (6mm to 9. 5mm Cable outside diameter) Load Bar for Faster and Easier Wire Pattern Termination Operation temperature: -40 ~ +60 & deg; C Relative humidity: 85% (30 & deg; C), Air pressure: 70-106Kpa Gold Plated Bronze Blade: bronze and gold plating (3-50 & #0181; inch}, mating durability not less than 750 cycles Made from Kirsite \ PC or PCB(UL94VO) Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor) Insulated resistance: no less than 1, 000 megohm in normal atmospheric pressure 1, 000 VDC (700 VAC) Retention strength: 7. 7kg between jack and plug Support Files: Quick Install Guide (Dec 5, 2017) Dimensions Diagram (Jul 28, 2017) Entegrade & trade; is a trademark of MONOPRICE, Updated Feb 22, 2019

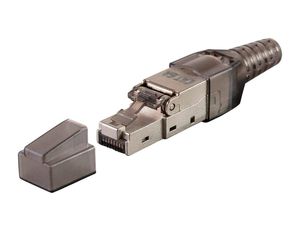

Monoprice Entegrade Series Cat6A RJ-45 Field Connection Modular Plug, Shielded for 23/24AWG Installation Cable, 10 Pack
Price is below average
Current Price
$39.54
Average
$43.13
Min Price
$30.88
Max Price
$55.99
Price dynamics
8%
Description
Cat6a Class Ea RJ45 Field Assembly Plug UTP & FTP Easy Assembly terminate in field in minutes without special tools Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0. 46 to 0. 76 mm Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0. 4 to 0. 76 mm Transmission Characteristics: Cat6a per IS0/IEC 11801 Ed. 2. 2: 2011-06 Complies with class Ea to ISO/EIC 11801 Ed. 2. 2. 2011-06, DIN EN 50173-1: 2011-09 10 Gbit IEEE 802. 3an Supports Power over Ethernet (PoE, PoE plus, and UPoE) Compatible with Cable Jacket Diameters from 6 to 9. 5 mm Adjustable Strain Relief (6mm to 9. 5mm Cable outside diameter) Load Bar for Faster and Easier Wire Pattern Termination Operation temperature: -40 ~ +60 & deg; C Relative humidity: 85% (30 & deg; C), Air pressure: 70-106Kpa Gold Plated Bronze Blade: bronze and gold plating (3-50 & #0181; inch}, mating durability not less than 750 cycles Made from Kirsite \ PC or PCB(UL94VO) Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor) Insulated resistance: no less than 1, 000 megohm in normal atmospheric pressure 1, 000 VDC (700 VAC) Retention strength: 7. 7kg between jack and plug Support Files: Quick Install Guide (Dec 5, 2017) Dimensions Diagram (Jul 28, 2017) Entegrade & trade; is a trademark of MONOPRICE, Updated Feb 22, 2019
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
