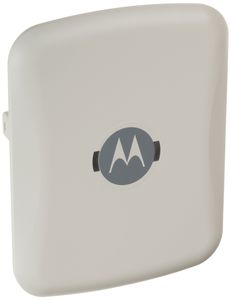

This Motorola AP-0650-66030-US IEEE 802.11n 300 Mbps Wireless Access Point with ISM Band and UNII Band provides dual radio 802.11n performance for connectivity. The 24 dBm radio increases coverage, performance, and obstruction penetration compared to 23 dBm radios. It works with Motorola 802.11N band unlocking radios (sold separately), enabling the second radio wave transmission to be used for an alternative application such as for access or as a sensor for troubleshooting. The WiNG 5 operating system enables direct forwarding, security, and site survivability. A power supply is required (sold separately).
| Specifications | |
|---|---|
| Operating voltage | 802.3af supply: 48V @ 12.95W (typical), 36 to 57V (range) |
| Operating current | 270mA (typical) |
| Maximum available transmit power | 24 dBm |
| Transmit power adjustment | 1 dBm increments |
| Data rates supported | 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps |
| Network standard | 802.11a, 802.11b, 802.11g, 802.11n |
| Wireless medium | Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO) |
| Uplink | Auto-sensing 10/100/1000Base-T Ethernet |
| Operating channels | 5 GHz: All channels from 4920 MHz to 5825 MHz; 2.4G Hz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only. Actual operating frequencies depend on national regulatory limits. |
| Overall dimensions | 9.5 x 7.5 x 1.7 inches /24.13 x 18.916 x 4.36 cm (L x W x H) * |
| Reader weight | 2.0 oz./.91 kg |
| Color | White |
