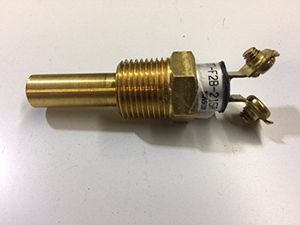

NASON TEMPERATURE PRESSURE SWITCH TT-F2B-215R
Current Price
$44.5
Average
$36.45
Min Price
$32.25
Max Price
$44.5
Price dynamics
18%
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
[Music] welcome this video will detail calibration instructions for the B Series pressure switches going to calibrate a B for 24 switch we have three wires connected to the micro switch the white wire is connected to the common contact the blue wire in the center is connected to the normally open contact and the red wire is connected to the normally closed contact this will allow our light box to operate when we open and close the switch the B Series switch is a single set point switch with a Center adjustment nut that is in there the nut is actually marked with the directions to turn it in either direction and there is also a feature of a setpoint locking screw so before you attempt an adjustment you need to loosen the setpoint locking screw which is right here with a couple of turns we are now ready to test the switch the first thing we do is exercise a switch we take it from zero psi
