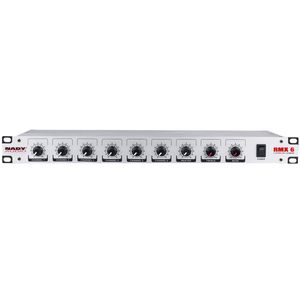

The Nady RMX-6 is a compact, versatile rack mixer, ideal for small PA installations, keyboard mixing, recording, and many other applications. Equipped with a master two-band EQ and a master volume control, it is extremely easy to interface to other equipment. It is clean, quiet, ruggedly built and extremely low profile.

15V Phantom power is available on inputs 3, 4 and 5, allowing you to use up to 3 studio grade condenser microphones at the same time. It is a great front end for recording when several microphones are used and mixed down to one signal. It is also ideal in installations such as conference/meeting rooms and pager systems where multiple microphones are used. The NADY RMX-6 was developed using the expertise of professional sound engineers and working musicians, and has superior performance and greater flexibility than any other rack mixers in its price range.

Specifications

Frequency Response: 10Hz-20kHz (±3dB)
Total Harmonic Distortion (THD) + Noise: 0.1%
S/N Ratio: >60dB
Tone Controls
Bass: ±12dB @ 100Hz
Treble: ±12dB @ 10kHz
Inputs:
6 X MIC (level/impedance): Balanced: 3mV
6 X LINE (level/impedance): Unbalanced: 100mV
Outputs (All controls flat)
High Output: 1.5V
Low Output: 0.5V
Impedance (XLR & 1/4"): 600Ω
LED indicator: Power ON
Fuse Requirements, Type and Size: T250mA, 5X20mm glass type
