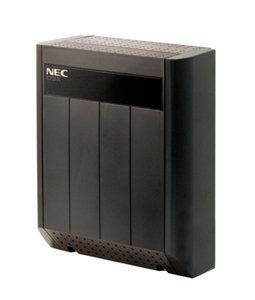

NEC KSU DSX80 4 Slot Common Equip. Cabinet

[Music] [Applause] [Music] this video will guide you through the installation of animal trunks to the SL 2100 communication system including the cabling and configuration with PC Pro the SL 2100 has a choice of a three channel analog trunk daughter card the 3c o IDB that can be mounted onto either the zero eight two zero zero eight or zero zero zero interface cards or the 3:08 card which has three analog trunks built into the card each of these can then be installed into a universal slot with the SL 2100 chassis when mounting the analog trunk daughter card onto either the zero eight two zero zero eight or zero zero zero interface cards you must first remove the knockout from the front panel of the interface card there are two knockouts remove only the correct knockout corresponding to the trunk daughter card being mounted remove the left knockout when mounting the analog trunk daughter
