Description
This compact, low-power, low-cost, advanced communication computer is based on a 133 Mhz 486 class processor. It has three 10/100 Mbit ethernet ports, up to 64 Mbyte SDRAM main memory and uses a CompactFlash module for program and data storage. It can be expanded using a MiniPCI type III board and a low-power standard PCI board.
It has been optimized for use as a Firewall and VPN Router, but has the flexibility to take on a whole range of different functions as a communication appliance.
Standard Configuration
+ 133 Mhz AMD ElanSC520
+ 64 Mbyte SDRAM, soldered on board
+ 1 Mbit BIOS/BOOT Flash
+ CompactFLASH Type I/II socket
+ 3 10/100 Mbit Ethernet ports, RJ-45
+ 1 Serial port, DB9. (optional 2nd serial port)
+ Power LED, Activity LED, Error LED
+ Mini-PCI type III socket. (t.ex for optional hardware encryption.)
+ PCI Slot, right angle 3.3V only. (t.ex for optional WAN board.)
+ 8 bit general purpose I/O, 14 pins header
+ Hardware watchdog
+ Board size 4.85" x 5.7"
+ Power using external power supply is 6-20V DC, max 10 Watt
+ Option for 5V supply using internal connector
+ Operating temperature 0-60 °C
Software
+ comBIOS for full headless operation over serial port
+ PXE boot rom for diskless booting
+ Designed for FreeBSD, NetBSD, OpenBSD and Linux
+ Runs most realtime operating systems
The net4501 can be customized as follows:
+ 100 or 133 Mhz AMD ElanSC520
+ 16 to 64 Mbyte SDRAM, soldered on board
+ 1 to 3 10/100 Mbit Ethernet ports, RJ-45
Power supply not included.
Contact seller about multiple item discounts.

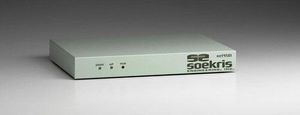

net4501 Communication Computer Board and Case
Current Price
$100
Average
$100
Min Price
$100
Max Price
$100
Description
This compact, low-power, low-cost, advanced communication computer is based on a 133 Mhz 486 class processor. It has three 10/100 Mbit ethernet ports, up to 64 Mbyte SDRAM main memory and uses a CompactFlash module for program and data storage. It can be expanded using a MiniPCI type III board and a low-power standard PCI board.
It has been optimized for use as a Firewall and VPN Router, but has the flexibility to take on a whole range of different functions as a communication appliance.
Standard Configuration
+ 133 Mhz AMD ElanSC520
+ 64 Mbyte SDRAM, soldered on board
+ 1 Mbit BIOS/BOOT Flash
+ CompactFLASH Type I/II socket
+ 3 10/100 Mbit Ethernet ports, RJ-45
+ 1 Serial port, DB9. (optional 2nd serial port)
+ Power LED, Activity LED, Error LED
+ Mini-PCI type III socket. (t.ex for optional hardware encryption.)
+ PCI Slot, right angle 3.3V only. (t.ex for optional WAN board.)
+ 8 bit general purpose I/O, 14 pins header
+ Hardware watchdog
+ Board size 4.85" x 5.7"
+ Power using external power supply is 6-20V DC, max 10 Watt
+ Option for 5V supply using internal connector
+ Operating temperature 0-60 °C
Software
+ comBIOS for full headless operation over serial port
+ PXE boot rom for diskless booting
+ Designed for FreeBSD, NetBSD, OpenBSD and Linux
+ Runs most realtime operating systems
The net4501 can be customized as follows:
+ 100 or 133 Mhz AMD ElanSC520
+ 16 to 64 Mbyte SDRAM, soldered on board
+ 1 to 3 10/100 Mbit Ethernet ports, RJ-45
Power supply not included.
Contact seller about multiple item discounts.
