Description
Technical Specifications:
- User Interface : Graphic User Interface (OSD)
- OS : Embedded Linux
- Operation Mode : preview, record, playback, backup, network
- Video input : 16 in, BNC
- Audio input : 1 in, RCA
- HDMI output : Support 1024X768,1280X1024,1366X768, 1440X900, 720P,1080P
- VGA output : Support
- Display : 1/4 optional
- Video standard : PAL/NTSC
- CVBS main output : 1 out, BNC; Resolution: PAL:704*576, NTSC: 704*480
- Audio output : 1 out,RCA
- Video compression : H.264
- Recording frame rate : PAL:100 fps(4 x 25 fps); NTSC:120 fps(4 x 30 fps)
- Video encoding resolution : PAL:WD1:960X576/WHD1:960X288/WCIF:480X288/D1:704X576/HD1:704*288/CIF 352X288NTSC:WD1:960X480/WHD1:960*240/WCIF:480X240/ D1:704X480/HD1:704*240/CIF 352X240
- Video frame rate : PAL: 1-25FPS NTSC:1-30FPS
- Video bit rate : WQCIF(QCIF):192-384kbps,WCIF(CIF):384-768kbps, WHD1(HD1):512-1280kpbs,WD1(D1):768-1536Kbps,
- Stream Type : Video & Audio/Video
- Audio compression : ADPCM
- Recording mode : Always/Schedule/Alarm Recording/Motion Detection Recording
- Video search : Time/Channel/Event
- Audio bit rate : 8-32kbps
- Dual-stream : Supports
- Mobile phone Monitor : Supports Android phone/iPhone/iPad
- Recording resolution : 4CH WD1(D1) Recroding & 4CH Playback/1CH Realtime Playback;4CH CIF(WCIF) Recroding & 4CH Realtime Playback;
- Playback : 1-8 CH optional
- Maximum capacity : 4TB for each Sata connector
- Record mode : Audio & Video recording simultaneously
- Network protocol : Supports IE/PPPoE/DDNS/DHCP
- Network : 1 RJ45 10M/100M
- Serial port : 1 RS-485 serial port
- USB Connector : 2 USB
- Operation : -10℃-+55℃
- Power supply : 12V 2A
- Chassis : Standard 1.0U

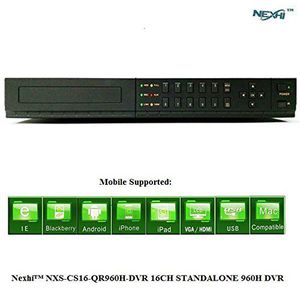

NexhiTM NXS-CS16-QR960H-DVR 16CH STANDALONE 960H DVR with HDMI & QR READER for SMART PHONE EASY ACCESS
Current Price
$229.99
Average
$169.99
Min Price
$109.99
Max Price
$229.99
Price dynamics
26%
Description
Technical Specifications:
- User Interface : Graphic User Interface (OSD)
- OS : Embedded Linux
- Operation Mode : preview, record, playback, backup, network
- Video input : 16 in, BNC
- Audio input : 1 in, RCA
- HDMI output : Support 1024X768,1280X1024,1366X768, 1440X900, 720P,1080P
- VGA output : Support
- Display : 1/4 optional
- Video standard : PAL/NTSC
- CVBS main output : 1 out, BNC; Resolution: PAL:704*576, NTSC: 704*480
- Audio output : 1 out,RCA
- Video compression : H.264
- Recording frame rate : PAL:100 fps(4 x 25 fps); NTSC:120 fps(4 x 30 fps)
- Video encoding resolution : PAL:WD1:960X576/WHD1:960X288/WCIF:480X288/D1:704X576/HD1:704*288/CIF 352X288NTSC:WD1:960X480/WHD1:960*240/WCIF:480X240/ D1:704X480/HD1:704*240/CIF 352X240
- Video frame rate : PAL: 1-25FPS NTSC:1-30FPS
- Video bit rate : WQCIF(QCIF):192-384kbps,WCIF(CIF):384-768kbps, WHD1(HD1):512-1280kpbs,WD1(D1):768-1536Kbps,
- Stream Type : Video & Audio/Video
- Audio compression : ADPCM
- Recording mode : Always/Schedule/Alarm Recording/Motion Detection Recording
- Video search : Time/Channel/Event
- Audio bit rate : 8-32kbps
- Dual-stream : Supports
- Mobile phone Monitor : Supports Android phone/iPhone/iPad
- Recording resolution : 4CH WD1(D1) Recroding & 4CH Playback/1CH Realtime Playback;4CH CIF(WCIF) Recroding & 4CH Realtime Playback;
- Playback : 1-8 CH optional
- Maximum capacity : 4TB for each Sata connector
- Record mode : Audio & Video recording simultaneously
- Network protocol : Supports IE/PPPoE/DDNS/DHCP
- Network : 1 RJ45 10M/100M
- Serial port : 1 RS-485 serial port
- USB Connector : 2 USB
- Operation : -10℃-+55℃
- Power supply : 12V 2A
- Chassis : Standard 1.0U
