Description
The built-in Nidec drive of the DC circuit of brushless motor, voltage 6V-10V (pay attention to the use of regulated power supply. AC rectifying not, peak voltage high), built-in drive circuit, requires only DC power supply can work, brushless motor heating is brush more, attention to the use of temperature and heat dissipation. 3. Brushless motor wiring instructions: White: PWM speed (input) Yellow line: speed feedback (output) The blue line: enable (input) The orange line: the motor rotation direction select (input) Black: negative Red: positive (6v-12v) To make the motor turn up, need to connect the 4 lines: White + Blue + Red ---- > positive line (6v-12v) Black -----> cathode motor diameter: 36MM Height:40MM Voltage: 6-10V dc Current: no load 400MA Speed: 2000-4000rpm Wegiht: 145g

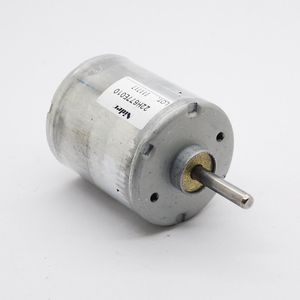

Nidec 6-10V DC 2000-4000RPM 3 Phase brushless Motor Driver in DIY electrodrill
Current Price
$9.99
Average
$9.99
Min Price
$9.99
Max Price
$9.99
Price dynamics
0%
Description
The built-in Nidec drive of the DC circuit of brushless motor, voltage 6V-10V (pay attention to the use of regulated power supply. AC rectifying not, peak voltage high), built-in drive circuit, requires only DC power supply can work, brushless motor heating is brush more, attention to the use of temperature and heat dissipation. 3. Brushless motor wiring instructions: White: PWM speed (input) Yellow line: speed feedback (output) The blue line: enable (input) The orange line: the motor rotation direction select (input) Black: negative Red: positive (6v-12v) To make the motor turn up, need to connect the 4 lines: White + Blue + Red ---- > positive line (6v-12v) Black -----> cathode motor diameter: 36MM Height:40MM Voltage: 6-10V dc Current: no load 400MA Speed: 2000-4000rpm Wegiht: 145g
