Description
65" Active Soundbar System
FEATURES
DC Power Supply Mounted Separately Sends Low Voltage DC Power Through Wall To Amplifier Module Allowing For Installation Without The Need For An Electrician.
Mounting System Allows For Ideal Placement Of LCR Speakers In Any Existing Stud Configuration.
Easily Connect Wireless Subwoofer Utilizing Nile SW-T Transmitter And SW-R Wireless Receiver.
Simply Connect A Distributed Audio System And It Is Automatically Selected When The TV Is Powered OFF.
TV Sound Always Takes Priority When The TV Is Turned ON, Even When The Whole House Audio Is ON, Greatly Simplifying User Operation.
SPECIFICATIONS
Loudspeaker Module
Dimensions: 9-5/8" L X 4" D X 6-1/2" H (24.4cm L X 10.2cm D X 16.5cm H)
Wiring: Impedance- Nominal 6Ω
Sensitivty: 86 DB, 1kHz @ 1W/1m
Max SPL: 105dB (LCR System)
Frequency Response: 65Hz - 25kHz
Power Handling Capability: 100 Watts
Amplifier Module
Output Power: 30W RMS X 3
Frequency Response: 100Hz To 20kHz, +0dB/-3dB Or Better
Channel Separation: (channel To Channel Crosstalk) @ 1kHz >70dB Or Better
Signal To Noise: 100Hz To 20kHz Unweighted >75dB Or Better Based On Rated Power
Power Supply
AC Input: 100-240V~2.5A, 50-60Hz
DC Output: 24V ⎓ 5A Max. & 120W Max.
Installation Dimensions
Frame Dimensions (with Grille): 5-1/4" H X 65" W (13.35cm H X 165.10cm W)
Hole Cutout Dimensions: 3-3/4" H X 62-1/4" W (9.53cm H X 158.115cm W)
Depth Behind Wall (5/8" Drywall): 3-1/2" (12.6cm)
WARRANTY
2 year limited
In-wall soundbar that installs flush below any flat panel TV

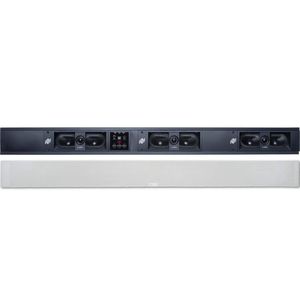

Niles CSF65A Cynema Soundfield 65" In-Wall Active Soundbar System (Black)
Price is below average
Current Price
$369
Average
$525.74
Min Price
$200
Max Price
$899.99
Price dynamics
30%
Description
65" Active Soundbar System
FEATURES
DC Power Supply Mounted Separately Sends Low Voltage DC Power Through Wall To Amplifier Module Allowing For Installation Without The Need For An Electrician.
Mounting System Allows For Ideal Placement Of LCR Speakers In Any Existing Stud Configuration.
Easily Connect Wireless Subwoofer Utilizing Nile SW-T Transmitter And SW-R Wireless Receiver.
Simply Connect A Distributed Audio System And It Is Automatically Selected When The TV Is Powered OFF.
TV Sound Always Takes Priority When The TV Is Turned ON, Even When The Whole House Audio Is ON, Greatly Simplifying User Operation.
SPECIFICATIONS
Loudspeaker Module
Dimensions: 9-5/8" L X 4" D X 6-1/2" H (24.4cm L X 10.2cm D X 16.5cm H)
Wiring: Impedance- Nominal 6Ω
Sensitivty: 86 DB, 1kHz @ 1W/1m
Max SPL: 105dB (LCR System)
Frequency Response: 65Hz - 25kHz
Power Handling Capability: 100 Watts
Amplifier Module
Output Power: 30W RMS X 3
Frequency Response: 100Hz To 20kHz, +0dB/-3dB Or Better
Channel Separation: (channel To Channel Crosstalk) @ 1kHz >70dB Or Better
Signal To Noise: 100Hz To 20kHz Unweighted >75dB Or Better Based On Rated Power
Power Supply
AC Input: 100-240V~2.5A, 50-60Hz
DC Output: 24V ⎓ 5A Max. & 120W Max.
Installation Dimensions
Frame Dimensions (with Grille): 5-1/4" H X 65" W (13.35cm H X 165.10cm W)
Hole Cutout Dimensions: 3-3/4" H X 62-1/4" W (9.53cm H X 158.115cm W)
Depth Behind Wall (5/8" Drywall): 3-1/2" (12.6cm)
WARRANTY
2 year limited
In-wall soundbar that installs flush below any flat panel TV
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video

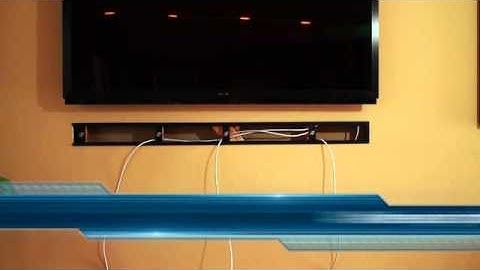

I'm Marshall courier thanks for joining us today I'm here at Bill Pollock's house and we're installing the Niles cinema sound field now for his particular television set we're actually going to be installing the 65 inch model just so it really fits that nice 70 of size screen
