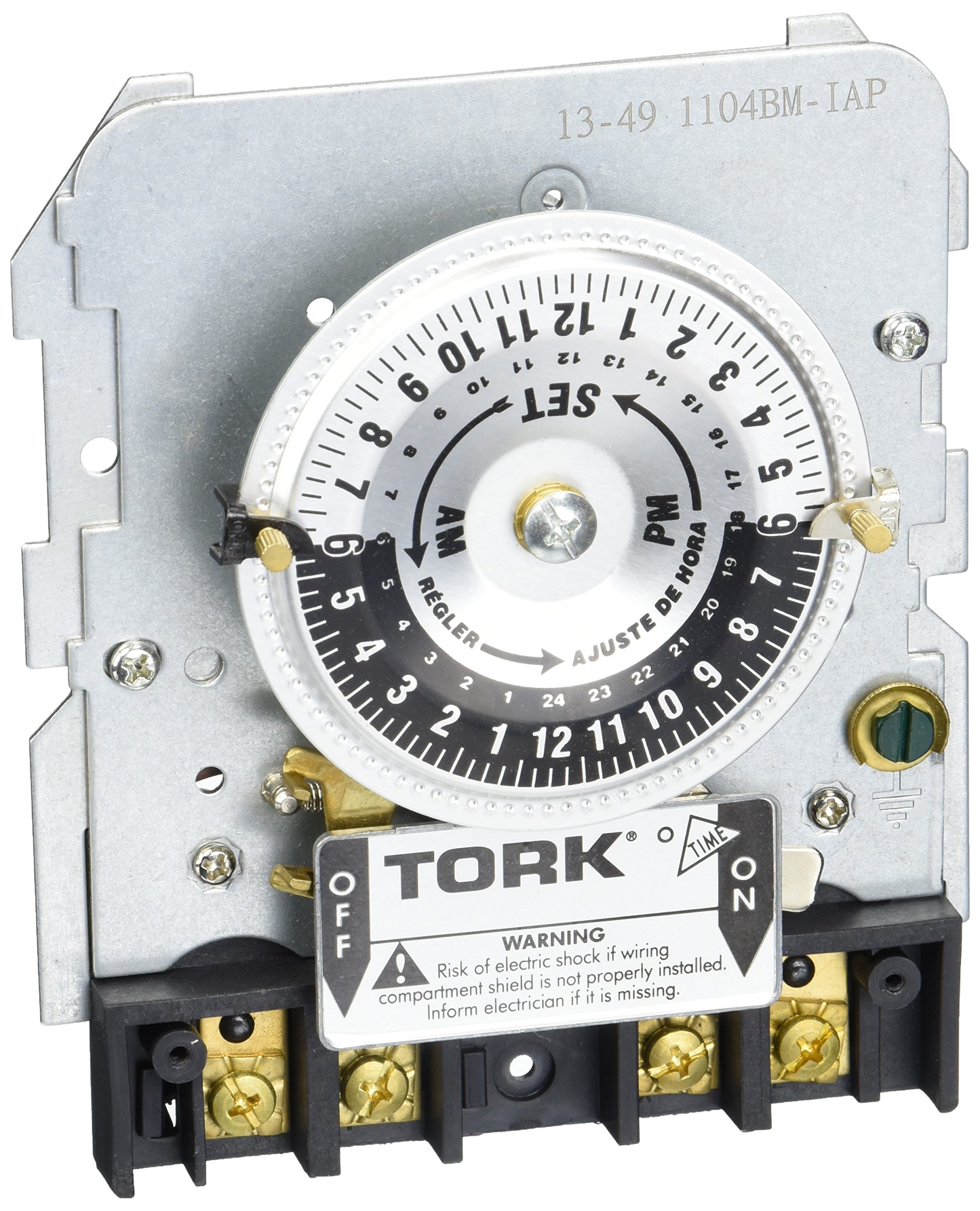

NSi 1104BM-IAP MECHANICAL TIME SWITCH, Color
Price is below average
Current Price
$37.56
Average
$38.62
Min Price
$27.89
Max Price
$113.16
Price dynamics
3%
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
everyone welcome to another torque tech video in this video we're going to show a typical commercial 120 volt wiring scenario for the e-series digital time switches this includes the e 101 B G W 101 B and ewz 101 first always disconnect the power at the main panel for the circuit you're working on rotate the plastic insulator panel out of the way to access the wiring terminals here we're using three 12 gauge conductors on each side black is hot white is neutral and green is the ground wire the bottom is the load side connected to the appliance or device we want the timer to control and the left is the supply side coming from the main panel connect to black jumper wires to the black hot wire on the supply side using a twist on wire connector then connect these jumpers to terminals 1 and 3 now connect both white neutral wires from the supply side and the load side together with a white ju
