Description:

Item type:tracking device

Main function 1: real-time positioning

2: historical trajectory

3: Electronic fence

4: Overspeed alarm

5: vibration alarm

6: Offline alarm

7: Remote power off and power off (optional)

8: low power alarm

9: power failure alarm

10: remote setting

Battery: There are 100MA

SIM card: 1

Vibration sensor: support

I/O interface: none

Hardware part chip: MTK MT6261D+RDA6625E

GSM band: 850/900/1800/1900MHz

GPS chip: UBLOX G7020

GPRS: Class12

GPS signal: L1, 1575.42MHz C/A

Number of GPS channels: 22 channels

GPS chip-level receiving sensitivity tracking: -165dBm

Capture: -148dBm

WIFI positioning accuracy: none

GPS positioning accuracy: 5 to 15 meters

Base station positioning accuracy: 100-1000 meters

Minimum standby current: less than 0.5 mA

Average standby current: less than 2.5 mA

Average operating current: about 55m / A

GPS antenna: built-in high sensitivity ceramic antenna, GSM antenna, FPC antenna

Vibration sensor: support

Microphone: none

Material: ABS environmentally friendly material

The software partially supports the operating system: supports Android 2.3 and above systems, IOS 5.0 and above

Call function: none

Support AGPS: cold start 38 seconds positioning

Tamper alarm: offline alarm

Power management: ultra low power management, intelligent sleep

Call back: no

Smart fence: automatic alarm when the setting range is exceeded

Historical track: You can check the historical track within 6 months

Package Include:

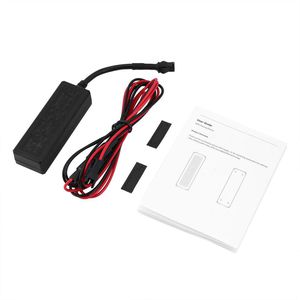

1 x product, 1 x Manual, 1 x box packaging

Note:

The colors deviation might differ due to different monitor settings.
