Description
Specifications: Size: C Capacity: 8500mAh Chemistry: Lithium Thionyl Chloride (Li-SOCI2) Voltage: 3.6V Brand: Omnicel Hermetic glass-to-metal sealing. Non-flammable electrolyte. UL Approved --- BBCV2.MH30127 Included Qty: 1 Electrical characteristics Nominal capacity 9Ah ( 9000 mAh) Open circuit voltage(at +20C +68F) 3.66V Nominal voltage(at 1mA +20C +68F) 3.6V Pulse capability: Typically up to 400 mA Max. Continuous current: 200mA Max Pulse current: 300mA Storage (recommended) +30C +86 F max Operating temperature range -55C / +85C lithium-thionyl chloride(Li-SOCl2) technology Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years. Diameter(max): 26.2mm (1.02 in) Height (max): 50.5mm (1.98 in) Typical weight: 52g (1.8 oz) Equivalent Batteries LS26500, LS26500C, TL-4920, TL-5920, TL-2200, SB-C01, SB-C02, SL-770, XL-140F, XL-145F, PT-2200 Main applications: Radio communication and other military applications Alarms and security systems Beacons and emergency location transmitters GPS Metering systems Sonobuoys LED lighting applications Memory backup for computers Others Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries. Warning: This is not rechargeable battery. Do not try to recharge it The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated Do not use if the battery casing was mangled. Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE. Don't use different models of battery in series. Soldering the tag should be finished in few seconds. This is not high drain battery, please don't use it for application with discrging current > 200mA

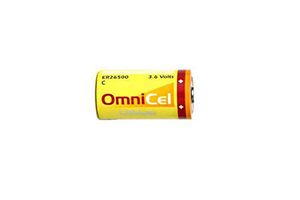

Omnicel 3.6 Volt C 8500 mAh (LS26500 and ER26500) Primary Lithium Battery
Price is below average
Current Price
$14.99
Average
$15.7
Min Price
$12.66
Max Price
$38.51
Price dynamics
5%
Description
Specifications: Size: C Capacity: 8500mAh Chemistry: Lithium Thionyl Chloride (Li-SOCI2) Voltage: 3.6V Brand: Omnicel Hermetic glass-to-metal sealing. Non-flammable electrolyte. UL Approved --- BBCV2.MH30127 Included Qty: 1 Electrical characteristics Nominal capacity 9Ah ( 9000 mAh) Open circuit voltage(at +20C +68F) 3.66V Nominal voltage(at 1mA +20C +68F) 3.6V Pulse capability: Typically up to 400 mA Max. Continuous current: 200mA Max Pulse current: 300mA Storage (recommended) +30C +86 F max Operating temperature range -55C / +85C lithium-thionyl chloride(Li-SOCl2) technology Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years. Diameter(max): 26.2mm (1.02 in) Height (max): 50.5mm (1.98 in) Typical weight: 52g (1.8 oz) Equivalent Batteries LS26500, LS26500C, TL-4920, TL-5920, TL-2200, SB-C01, SB-C02, SL-770, XL-140F, XL-145F, PT-2200 Main applications: Radio communication and other military applications Alarms and security systems Beacons and emergency location transmitters GPS Metering systems Sonobuoys LED lighting applications Memory backup for computers Others Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries. Warning: This is not rechargeable battery. Do not try to recharge it The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated Do not use if the battery casing was mangled. Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE. Don't use different models of battery in series. Soldering the tag should be finished in few seconds. This is not high drain battery, please don't use it for application with discrging current > 200mA
