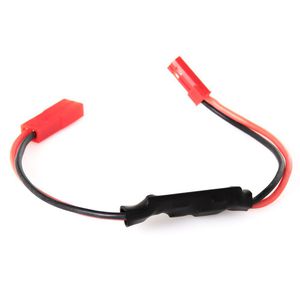

This compact 12V step-down regulator comes pre-soldered and good to go right out the box! No complicated installation or soldering required. With a lightweight and compact design, this regulator is perfect for anyone who needs to limit power output to their system.

• Input voltage: 12- 42 V
• Set 12V Output
• Regulator size: 32.5mm
• Cable Length (without connectors): 6 inches
• Maximum output current: 600 mA
• 1.25 MHz switching frequency
• 2 mA typical no-load quiescent current (20 μA typical quiescent current with SHDN = LOW)
• Integrated over-temperature and over-current shutoff
• Small size: 0.5″ × 0.4″ × 0.1″ (13 mm × 10 mm × 3 mm)
