Description:

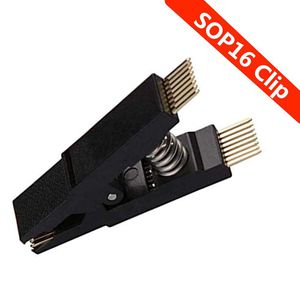

1.27mmProgrammer Testing Clip SOIC16 SOP16 DIP16 Pin Adapter Board IC Clamp

This clip provides a connection between an on-board surface mount device SOIC 16 IC and programmer.

Specifications:

Contacting Material:Copper Alloy

Contacting Plating:Gold

Connector Type:Test Clip

Mounting Type:PC Board

Case Style:SOIC

Series:923

Pin Format:SOIC 16

Lead Spacing:2.54mm

Row Pitch:3.81mm

IC Lead Pitch:1.27mm

Package Includes:

1xSOP16 IC Clip

Note:

The light clip is only one clip head (no solder wire, no board)

Before you buy, you need to know: some boards can directly clip the chip, but some boards can't operate like this, because the chip will be affected by the peripheral circuit on the board. Please know before shooting, so you can't use it if you buy it, but solder it. It is quite similar to a universal carrier, and is wide and narrow.

A lot of high-power programmers can basically be used normally.

When encountering a programmer with a protected function, the clip can not be read under normal voltage. At this time, a voltage of 3.3V needs to be added. The method is as follows: The clip clamps the chip, and the chip has the corresponding pin 8 The pin is charged with a voltage of 3.3V. Generally, the 3.3V power supply has two wires, then the VCC is connected to the clip, and the other wire is directly grounded.
