Panduit CJ688TPBL Category-6 8-Wire TP-Style Jack Module, Black

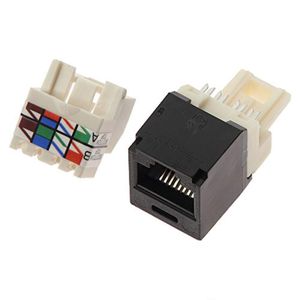

today we're going to cover terminating cat6 cable putting a jack on cat6 cable using panda it's mini comm system the cat six jack that I have here the mini comm jack the part number on that is CJ 6 8 8 t g bu and this jack comes in two parts you have the jack body and in what they refer to as the wire block and on one side of the wire block is the strain relief collar and this collar this top part of the collar actually slides down and you'll see that in a bit now on the wire block they have the the color legend here for termination and if you'll notice the bottom row there's the letter F and on the top row is the letter R if you were to hold the wire block horizontal looking straight onto it the F stands for front roll here and the R stands for the rear roll which will be back here so you have the front and rear roll left and right sides so you have four quadrants corresponding to the
