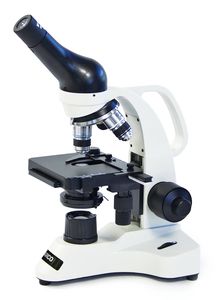

This Parco Scientific 3050 monocular compound microscope has a 45° inclined head that rotates 360°, and comes with a 10x Widefield eyepiece with a pointer. The eyepiece pointer ensures that definite points on the slide can be easily and quickly identified.
The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing. It is also sealed to protect against further damage that can be caused from contact with liquid or oils.
Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.
Specifications
- Eyepiece: WF 10x with pointer
- Magnification: 40x, 100x, 400x, 1000x
- Nosepiece: 4 hole objective turret; reverse position with click stops
- Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic
- Stage: Built in, double layer mechanical stage 4” x 3 ½ “ (W x D)
- Focusing: Coaxial coarse and fine focusing
- Condenser: 1.25 NA Abbe condenser
- Light Source: LED illumination with intensity control
- Overall Dimensions: 13” X 6” X 7” / Weight: 5 lbs
Packing List
- Monocular biological microscope with LED illumination
- One 10x widefield eyepiece with pointer
- 4x, 10x, 40xR, 100xR objectives
- Double layer, built-in mechanical stage with 2 Stage clips
- One dust cover
- User manual
