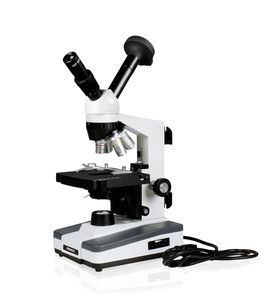

This Parco Scientific LTM compound microscope has a 45° inclined dual viewing head that reduces neck and eye strain. The WF 10x eyepiece with a built-in scale pointer ensures that definite points on the slide can be easily designated and quickly measured. The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.

Specifications

• Head: Dual view, 45° inclined, rotates 360°
• Eyepiece: Pair of WF 10x (one with a scale pointer)
• Magnification: 40x, 100x, 400x, 1000x
• Nosepiece: Revolving reversed quadruple objective
• Stage: Built-in, double-layer mechanical stage (5” x 4 ½”), smooth X/Y calibrated movement with cross travel range 3” x 2”
• Condenser: 1.25 N.A.
• Diaphragm: Iris diaphragm with a swing-out filter holder
• Power: 110V corded with cord wrap

Camera Specifications

• 3.0 megapixel (2048 x 1536 Max Resolution)
• 30 fps (640 x 480 Pixels)
• JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible;  USB 2.0 interface

Packing List

• Dual view compound microscope with LED illumination
• Pair of 10x widefield eyepieces (one with calibrated pointer)
• 4x, 10x, 40xR, 100xR objectives
• Immersion oil for 100xR objective
• Double layer, built-in mechanical stage with 2 Stage clips
/li>
• One dust cover
• User manual
• 3.0 MP digital eyepiece camera
• USB 2.0 cable
• Imaging software CD
