Product Description

This monocular compound microscope has a 10x WF eyepiece with a pointer, and a 25x WF eyepiece. The 45° inclined monocular head rotates 360° to provide trouble-free observation for two people. An eyepiece pointer ensures that definite points on the slide can be easily and quickly identified.

An iris diaphragm controls the amount of light illuminating the specimen. The built-in mechanical stage allows for precise, accurate positioning and smooth movement of the slide.

Scaled back, simple design of microscope, ideal for young students; It has many of the standard microscope features most commonly used in North America, with rugged metal components engineered for years of reliable performance.

Specifications

• Head: Monocular, 45° inclined, rotates 360°
• Eyepiece: WF 10x, WF 25x Eyepiece
• Magnification: 40x, 100x, 250x, 400x, 1000x
• Objective Lens: 4x, 10x, 40xR achromatic objectives
• Stage: Built in, double layer mechanical stage 4” x 3 ½ “ (W x D)
• Focusing: Coaxial coarse and fine focusing
• Condenser: 0.65 Abbe Condenser
• Diaphragm: Iris Diaphragm
• Light Source: LED illumination with intensity control
• Power: 110V or Rechargeable (Cordless) batteries
• Warranty：5 year limited warranty excluding bulbs

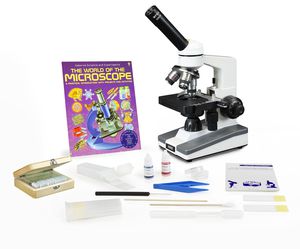

Packing List

• Monocular microscope
• One 10x WF eyepiece
• One 25x WF eyepiece
• 4x, 10x, 40xR objectives
• Power adaptor
• One dust cover
• User manual
• 3AA batteries
• The World of the Microscope book
• Microscope discovery activity kit
• 25 prepared slides variety set
• Free gift package ($10 value)

Shipping information

• 7” x 9” x 16”/5 lbs
