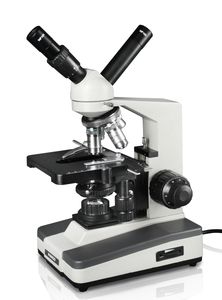

This Parco Scientific RCM-603-L dual view compound microscope is 45° inclined to reduce eye and neck strain. A diopter adjustment on one ocular tube compensates for eye-strength difference when needed. It features a reverse nosepiece to facilitate easy slide changes. Four achromatic objectives are parcentered and parfocaled to ensure the image stays centered and focused during every magnification change. sealed to protect against further damage that can be caused from contact with liquid or oils. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.

Specifications

• Head: Dual view, 45° inclined, rotates 360°
• Eyepiece: Pair of WF 10x/18mm (one with calibrated pointer)
• Magnification: 40x, 100x, 400x, 1000x
• Nosepiece: Revolving reversed quadruple objective
• Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic
• Stage: Built-in, double-layer mechanical stage (140mm x 140mm), smooth X/Y calibrated movement with cross travel range 75mm x 50mm
• Focusing: Coaxial coarse and fine focusing with gear movement for smooth operation
• Condenser: 1.25 NA Abbe condenser
• Diaphragm: Iris diaphragm with a swing-out filter holder
• Light Source: LED Koehler illumination with intensity control
• Power: 110V

Packing List

• Dual view compound microscope with LED Koehler illumination
• Pair of 10x widefield eyepieces (one with calibrated pointer)
• 4x, 10x, 40xR, 100xR DIN achromatic objectives
• Immersion oil for 100xR objective
• Double layer, built-in mechanical stage with 2 Stage clips
• Power adaptor
• One dust cover
• User manual
