Description:
This device provides power and data on the same Ethernet cable using pins 1,2 and 3,6 (802.3af - Mode A). All devices receive the same voltage (48v) for a combined total of 120 watts. To calculate estimated power budget, check individual device specs for power needs.

Product Features:
Instantly add gigabit PoE to any network switch or router with the option to mix 10/100 and gigabit data rate devices on the same injector
Use to power up to 16 802.3af devices with total shared power requirements of 120 watts or less
2nd power supply input for redundancy or higher total power - See PS-48v120w
Powers devices labeled "12v,PoE" like Hikvision
Extend power up to 328 ft or 100 meters
Passive power is on all the time
Compatible with our GAF-5v10w or GAF-12v12w splitters for powering non-PoE devices
Proven reliability since 2012

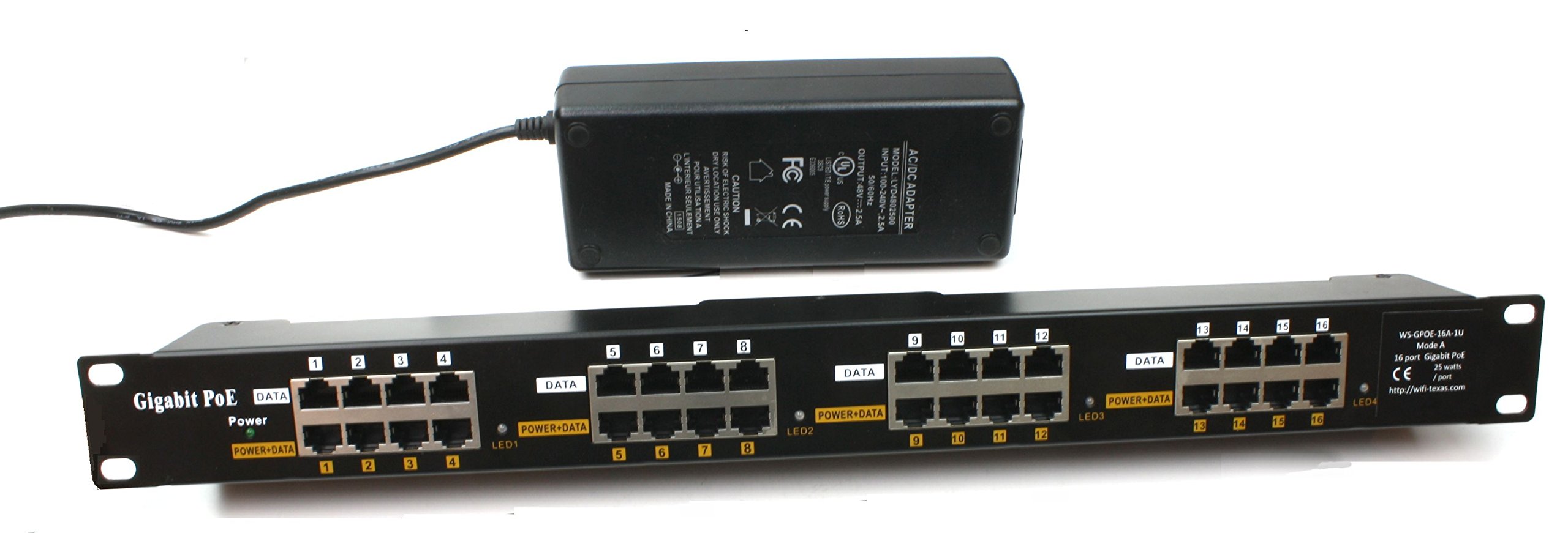

Included in the kit:
1x 16 Port Midspan PoE Injector
1x 48-Volt 120-Watt UL/CE/FCC Certified Power Supply

Product Specifications:
Certifications: UL/CE/FCC (Power Supply)
Data Ports: 16
Data + PoE Ports: 16
Data Rate: Gigabit
Power Input: 2.1mm DC x 2
Input Voltage: 48-Volts DC
Power Supply: 48-Volts DC, 120-Watts
Max Amps Per Port: 650mA
Max Power Per Port: 30 Watts
PoE Method: Passive
Output Voltage: 48 Volts
PoE Mode/Pinout: Mode A (-1,2 +3,4)
PoE Standard: IEEE 802.3af
Dimensions: 19x2x2 Inches
Operating Humidity: 5% to 90%
Operating Temperature Range: -10 - 60C

Other products from PoE Texas
GPOE-12AB-48v120w - 12- port rackmount option
POE-16-48v120w - 10/100 version
GPOES-8-7AB-48v60w - integrated switch with single uplink port for data
POE-Tester-GEN2 to display power used by a device
GAF-5v10w / 5-volt and GAF-12v12w / 12-volt splitters

** To extend power to USB, 5v and 12v, non-poe devices - please see our active splitters
