1.0 Introduction

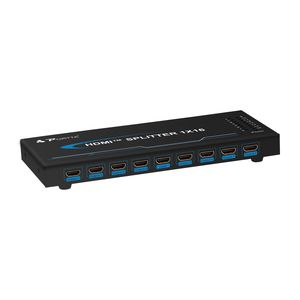

This 16-Port HDMI™ Amplifier Splitter lets you share a single HDMI™ source signal between sixteen HDMI™ enabled displays simultaneously. Supporting True HD 1080p video resolutions, the HDMI™ splitter acts as a distribution amplifier that enables you to situate your HDMI™-capable displays up to 50ft (15m) away from the splitter, The HDMI™ splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI™ output devices such as Blu-ray players or desktop/laptop computers.
2.0 Specification
Signal Input: HDMI Signal
Input Video Signal:0.5-1.0 volts p-p
Input DDC Signal:5 volts p-p(TTL)
HDMI Compliance:HDMI Signal
Video Amplifier Bandwidth: 2.25Gbps/225MHz
Interlaced Resolutions(50&60Hz):480i,576i,1080i
Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p
Operating Temperature:0℃ to 70℃
Storage Humidity: 5% to 90% RH (no condensation)
Power Supply:12V DC@2A
Power Consumption(Max): 12W
Splitter Unit Cert:FCC.CE, RoHS
Power Supply Cert:CE,FCC, RoHS
AC Power Adapter:US,UK, EU,AUS etc.
3.0 Package Content
1) Main Unit x1
2) Power Supply x1
3) User Manual (English Version) x1
Portta 1x16 16 Ports HDMI Splitter Distribution Amplifier Professional HDMI Powered for Full HD 1080p & 3D Support with Deep Color HD Audio
1.0 Introduction
This 16-Port HDMI™ Amplifier Splitter lets you share a single HDMI™ source signal between sixteen HDMI™ enabled displays simultaneously. Supporting True HD 1080p video resolutions, the HDMI™ splitter acts as a distribution amplifier that enables you to situate your HDMI™-capable displays up to 50ft (15m) away from the splitter, The HDMI™ splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI™ output devices such as Blu-ray players or desktop/laptop computers.
2.0 Specification
Signal Input: HDMI Signal
Input Video Signal:0.5-1.0 volts p-p
Input DDC Signal:5 volts p-p(TTL)
HDMI Compliance:HDMI Signal
Video Amplifier Bandwidth: 2.25Gbps/225MHz
Interlaced Resolutions(50&60Hz):480i,576i,1080i
Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p
Operating Temperature:0℃ to 70℃
Storage Humidity: 5% to 90% RH (no condensation)
Power Supply:12V DC@2A
Power Consumption(Max): 12W
Splitter Unit Cert:FCC.CE, RoHS
Power Supply Cert:CE,FCC, RoHS
AC Power Adapter:US,UK, EU,AUS etc.
3.0 Package Content
1) Main Unit x1
2) Power Supply x1
3) User Manual (English Version) x1
