Overview

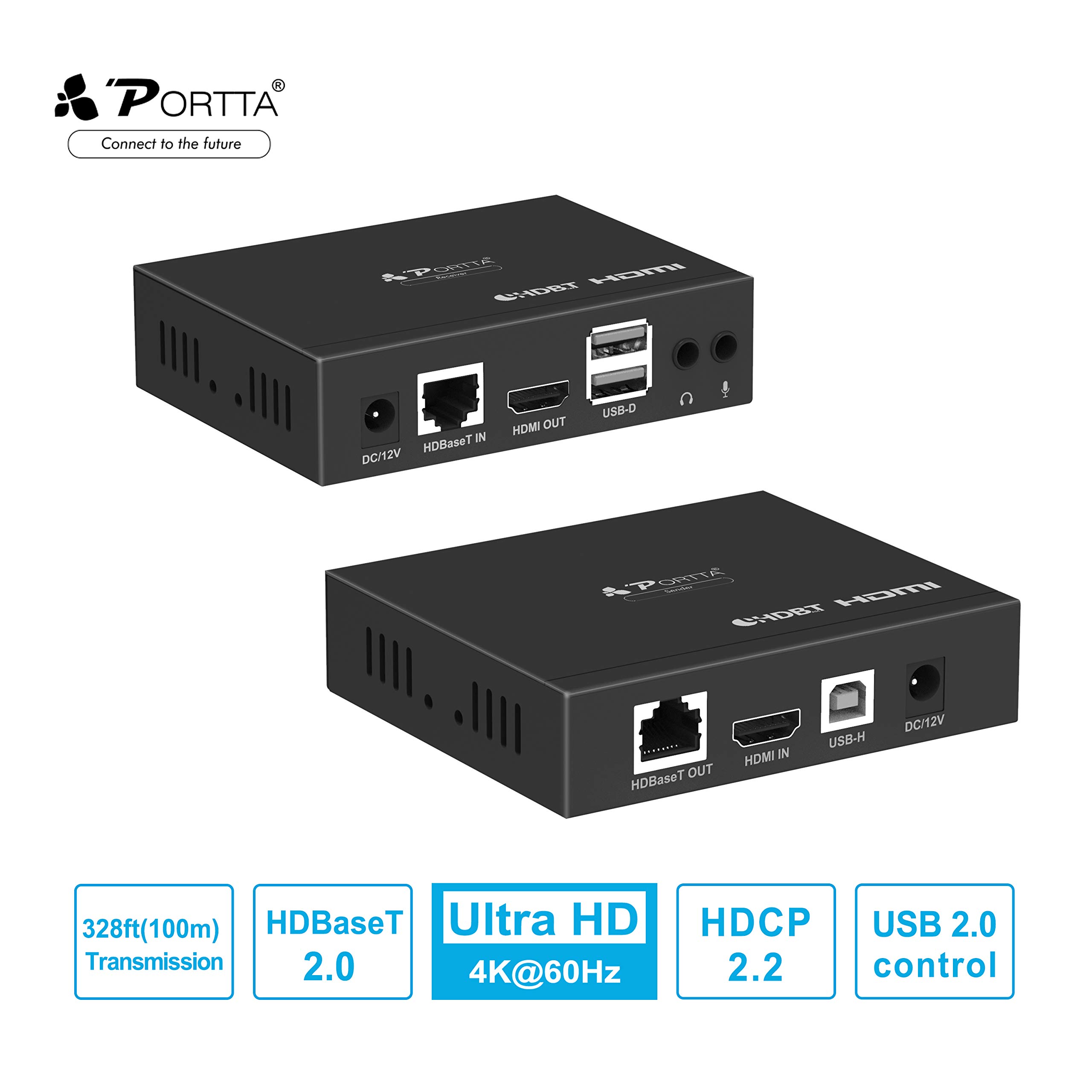

Portta HDMI HDBaseT Extender 100m lets you control your source device from up to 100 meters (328 ft) away over a single cat5e/6 cable connection, with uncompressed 4K HDMI video and access to up to 6 connected USB devices. This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points.
Feature
- Support Full 3D, 1080p,4K@30Hz and 4K@60Hz resolution
- Compatible with YUV 4:2:0.
- Compliant with HDCP2.2
- Support HDBaseT 2.0 over a single CAT5e/6/7 cable up to 100m/328ft
- Support USB 2.0 control
- Support Consumer Electronics Control function
- Support uncompressed audio such as LPCM7.1
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
Specification - Signal Input: HDMI Signal
- Input Video Signal: 0.5-1.0volts/p-p
- Output Video: HDMI Signal
- DTV/HDTV: 480p/576p/720p/1080p/4K
- CAT-6 Cable: 70m for 4K@30Hz or 4K@60Hz 4:2:0
- Vertical Frequency Range: 50/60Hz
- Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p,4K
- Power Supply: 12V DC
- Power Consumption(MAX): 10W
- Extender Unit Cert: FCC, CE, RoHS
- Power Supply Cert: CE, FCC, RoHS
Package Contents
HDMI HDBaseT Extender - Sender x1,
HDMI HDBaseT Extender - Receiver x1
12V DC Power Adapter x 2
Mounting Ear x 4
User Manual x1
Warranty Card x1
Portta HDMI USB2.0 KVM HDBaseT Extender Extension Uncompressed 4K@60Hz 4:2:0 100M(328ft) w/High-speed 6 Ports USB 2.0 Hub 3.5mm Stereo Audio Microphone 1080p 4K@30Hz CEC HDCP2.2
Overview
Portta HDMI HDBaseT Extender 100m lets you control your source device from up to 100 meters (328 ft) away over a single cat5e/6 cable connection, with uncompressed 4K HDMI video and access to up to 6 connected USB devices. This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points.
Feature
- Support Full 3D, 1080p,4K@30Hz and 4K@60Hz resolution
- Compatible with YUV 4:2:0.
- Compliant with HDCP2.2
- Support HDBaseT 2.0 over a single CAT5e/6/7 cable up to 100m/328ft
- Support USB 2.0 control
- Support Consumer Electronics Control function
- Support uncompressed audio such as LPCM7.1
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
Specification - Signal Input: HDMI Signal
- Input Video Signal: 0.5-1.0volts/p-p
- Output Video: HDMI Signal
- DTV/HDTV: 480p/576p/720p/1080p/4K
- CAT-6 Cable: 70m for 4K@30Hz or 4K@60Hz 4:2:0
- Vertical Frequency Range: 50/60Hz
- Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p,4K
- Power Supply: 12V DC
- Power Consumption(MAX): 10W
- Extender Unit Cert: FCC, CE, RoHS
- Power Supply Cert: CE, FCC, RoHS
Package Contents
HDMI HDBaseT Extender - Sender x1,
HDMI HDBaseT Extender - Receiver x1
12V DC Power Adapter x 2
Mounting Ear x 4
User Manual x1
Warranty Card x1
