1.0 INTRODUCTION

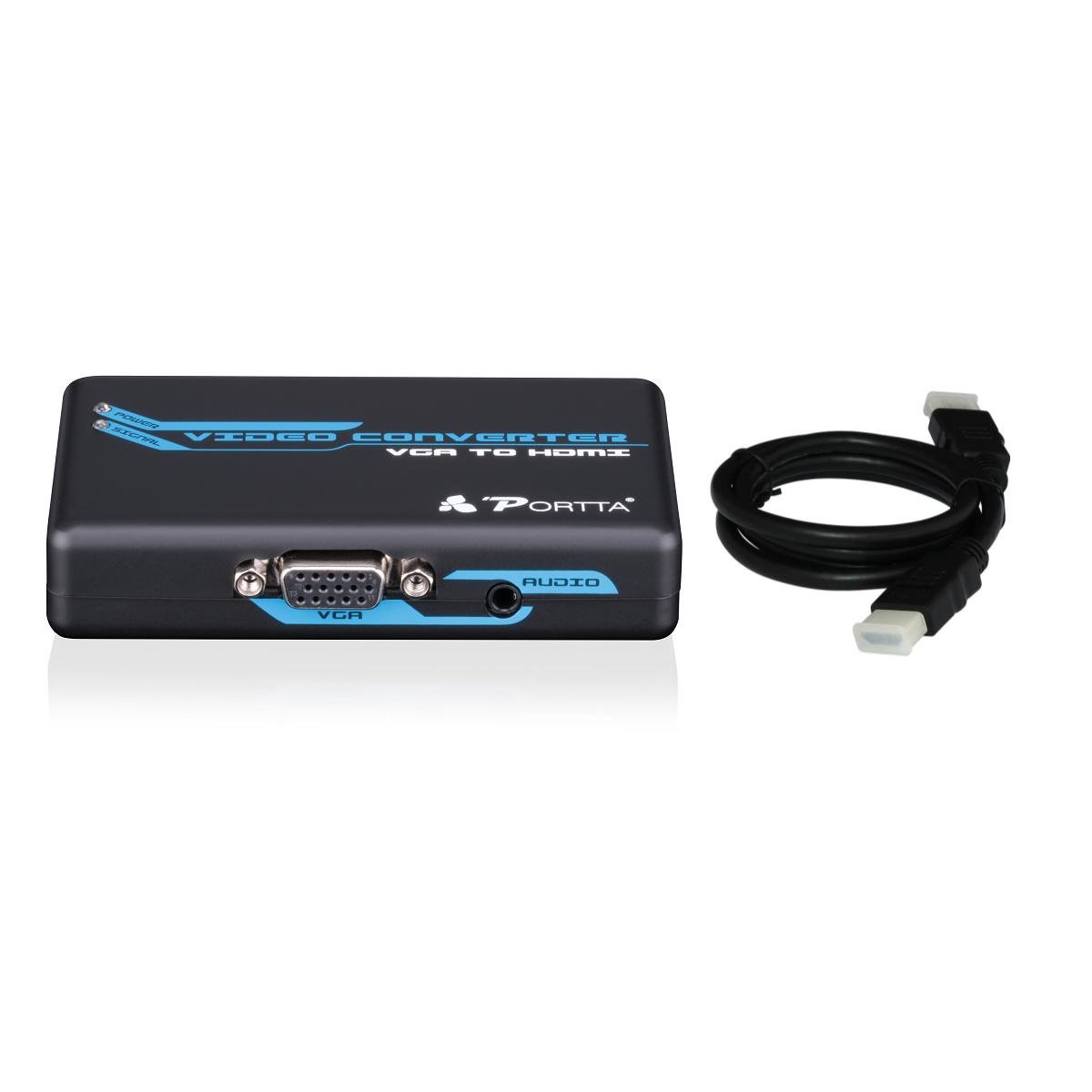

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allowPC users to show their image not only on the PC monitor, but could also on TV, to have a large display. The conversion is along with the audio.

2.0 SPECIFICATIONS
*Signal Inputs:VGA Signal
*Input Video Signal:0.5 -1.0 volts p-p
*Output Video:HDMI Signal
*DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080P
*Video Amplifier Bandwidth: 1.65Gpbs/165MHz
*Vertical Frequency Range: 50/60Hz
*Interlaced(50&60Hz):480i,576i,1080i
*Progressive(50&60Hz):480p,576p,720p,1080p
*Operating Temperature:0℃ to +70℃
*Operating Humidity:10% to 85 % RH (no condensation)
*Storage Temperature: -10℃ to +80℃
*Storage Humidity: 5% to 90 % RH (no condensation)
*Power Supply:5V DC
*Power consumption (Max): 5W
*Converter Unit Cert.:FCC,CE,
*Power Supply Cet.:CE,FCC

3.0 PACKAGE CONTENTS
1) Main unit x1
2) 5V DC Power Adapter x1
3) 2M HDMI Cable x1
4) User Manual(English Version) x1
5) Warranty Card x1 (5 Years Worry-free Warranty)
