Description

The ACP88 gives you total dynamics control for multi-tracking and live sound reinforcement. Eight compressor/limiters deliver transparent dynamics control. Eight full featured gates seamlessly control unwanted noise and bleed-through. Control vocals, tame drums, protect speakers, tighten the low-end – all from just two rack spaces of powerful processing.

Features

Eight Full Featured Compressor/Limiters
Eight Full Featured Gates
Side Chain on Every Channel
Trigger Inputs on Every Channel
Balanced/Unbalanced I/O
Comprehensive Linking via Unique Power Summing Bus
Takes the Place of Multiple Processors
Crystal Clear Compression & Gating for Multi-Tracking & Live Sound
Allows Spectral Processing & Gate Keying via Separate Jacks
+4/-10 Stereo Operating Level

Specifications

Number of Channels: Eight
Dynamic Range: >115dB
Signal to Noise Ratio: >95dB
Headroom:
+24dBu, Unbalanced
+18dBu, Balanced
Frequency Response: 10Hz to 50kHz
Crosstalk: <82dB @10kHz
Compression Threshold Range: -40dBu to +20dBu
Compression Ratio: 1:1 to 20:1
Compressor Attack Time: 0.02ms to 200 ms
Compressor Release Time: 0.5ms to 500ms
Auto Attack and Release: Program Dependent
Gate Threshold Range: -70dBu to +20dBu
Gate Attack Time: 0.01ms to 100ms
Gate Release Time: 0.02ms to 2 sec
Gate Attenuation Range: -15dB or -60dB
Input Impedance: 10k Ohms
Output Impedance: 51 Ohms
THD + Noise: <0.02%
Output Gain: -20dB to +20dB
Compression Curve Types: Hard and Soft Knee
Compression Metering: Above/Below Threshold LED
Gate Metering: Open and Closed LED
Sidechain Output Impedance: 51 Ohms
Sidechain Input Impedance: 10k Ohms
Internal Operation Level: +4dBu=0dBu
Input Range: +4dBu or -10dBu
Input Connectors: 1/4" TRS, Balanced or Unbalanced
Output Connectors: 1/4" TRS, Balanced or Unbalanced
Compressor Sidecha

PreSonus ACP88 8-Channel Compressor/Limiter/Gate

Price is below average

Get price

Current Price

$299.99

Average

$800.67

Min Price

$299.99

Max Price

$899.95

Price dynamics

63%

Description

Features

Eight Full Featured Compressor/Limiters
Eight Full Featured Gates
Side Chain on Every Channel
Trigger Inputs on Every Channel
Balanced/Unbalanced I/O
Comprehensive Linking via Unique Power Summing Bus
Takes the Place of Multiple Processors
Crystal Clear Compression & Gating for Multi-Tracking & Live Sound
Allows Spectral Processing & Gate Keying via Separate Jacks
+4/-10 Stereo Operating Level

Specifications

Number of Channels: Eight
Dynamic Range: >115dB
Signal to Noise Ratio: >95dB
Headroom:
+24dBu, Unbalanced
+18dBu, Balanced
Frequency Response: 10Hz to 50kHz
Crosstalk: <82dB @10kHz
Compression Threshold Range: -40dBu to +20dBu
Compression Ratio: 1:1 to 20:1
Compressor Attack Time: 0.02ms to 200 ms
Compressor Release Time: 0.5ms to 500ms
Auto Attack and Release: Program Dependent
Gate Threshold Range: -70dBu to +20dBu
Gate Attack Time: 0.01ms to 100ms
Gate Release Time: 0.02ms to 2 sec
Gate Attenuation Range: -15dB or -60dB
Input Impedance: 10k Ohms
Output Impedance: 51 Ohms
THD + Noise: <0.02%
Output Gain: -20dB to +20dB
Compression Curve Types: Hard and Soft Knee
Compression Metering: Above/Below Threshold LED
Gate Metering: Open and Closed LED
Sidechain Output Impedance: 51 Ohms
Sidechain Input Impedance: 10k Ohms
Internal Operation Level: +4dBu=0dBu
Input Range: +4dBu or -10dBu
Input Connectors: 1/4" TRS, Balanced or Unbalanced
Output Connectors: 1/4" TRS, Balanced or Unbalanced
Compressor Sidecha

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

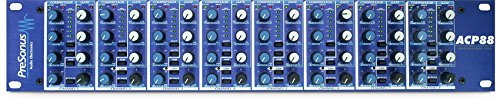

either everyone bruno Lucia for glb productions thanks for joining us for this video in which I'm going to show you how to use the Presonus ACP 88 this unit is an 8 channel combined compressor and gate it's an extremely useful unit and there are still many many of these in use all over the world even though increasingly we find ourselves going to digital mixers which have built-in dynamics on each channel this is a fully analog unit which has been one of the best sellers for Presonus and we're very fortunate that we have one so follow along in this video and I'll show you how to work it ok everyone this is the front of the Presonus ACP 88 and as you can see it is located immediately above the mixer and below the lexicon effects unit now the first thing that we need to realize is that this unit as the name suggests is divided into eight individual channels each of which has 8 knobs hence
