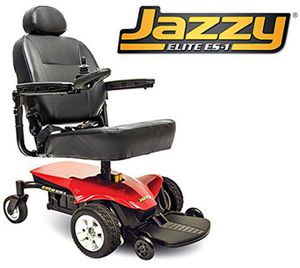

The Jazzy Elite ES-1 delivers a reliable blend of power, performance and style. The in-line, front-wheel drive technology gives the Elite ES-1 excellent stability and maneuverability for solid performance indoors and out.

• In-line, front-wheel drive technology
• 40 amp, PG GC 3 controller
• Simple main frame design for easy serviceability
• 18" x 18" comfort high-back seat with headrest (standard)
• Jazzy Armor controller guard to protect from daily wear and tear

• Model: Jazzy Elite ES-1
• Weight Capacity: 300 lbs.
• Turning Radius*: 23.5"
• Width*: 22.75"
• Length*: 34.75" (Without front riggings)
• Maximum Speed**: Up to 4 mph
• Ground Clearance*: 0.75"
• Front Wheels: 5" solid anti-tips
• Drive Wheels: 9" solid
• Rear Wheels: 6" solid casters
• Drivetrain: Two-motor, in-line, front-wheel drive
• Braking System: Regenerative and electro-mechanical
• Suspension Type: Limited
• High-Back Seat: (max. size) 20"W x 20"D
• High-Back Seat-to-Floor Range: 21.5" - 23.5"
• Standard Electronics: 40A, PG GC3
• Battery Size: (2 required) 12 volt, U-1
• Standard Battery Charger: 3A, off-board
• Per-Charge Range**: Up to 12 miles
• Battery Weight: 25 lbs. each
• Weight of Heaviest Piece: 69 lbs.
• Standard Seat Weight: 43 lbs. (comfort, high-back)
• Standard Seat Size: 18"x18"-20"
• Warranty:
  • 5-year limited warranty on frame,
  • 13-month limited warranty on electronics,
  • 13-month limited warranty on drive motors
• * Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %.
• ** Varies with user weight, terrain, battery type, battery condition and tire pressure.
