Specifications:
Size: about 61mm*45mm
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 0-25A
Maximum transient current: 34-40A
Quiescent current: less than 30uA
Internal resistance: less than 100mΩ
Working temperature: -40---+50℃
Storage condition: -40-- +80℃
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery
Size: about 61mm*45mm
Weight :12g
Note:
1.Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
2.Please allow 1-3mm differs due to manual measurement.
3.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
4.The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, can not be used for electric fish machine battery pack, electric bicycle battery pack, children's car battery, 775 (4A) motor, 1W fish eye LED light
Package Included:

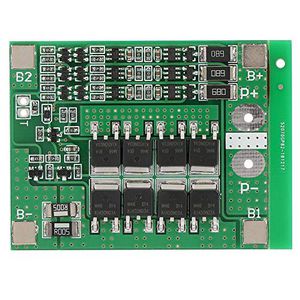

1PC X PCB Protection Board
