Don't sacrifice performance when fitting cables into tight spots or routing them around corners. Thin coax is flexible but has high signal loss and is susceptible to interference.Proxicast's UltraFlex-240 coax has stranded solid copper signal conductors, a flexible aluminum inner shield, a braided outer shield and a soft thermoplastic elastomer (TPE) jacket giving our cable unmatched performance, flexibility and excellent weather resistance for indoor or outdoor applications. Gold-plated signal pins are soldered to the conductors; shrink tubing is applied over all ferrules.
UltraFlex-240's 19 strand copper core and double shielded construction deliver the lowest loss of any 0.24 inch or smaller flexible cable. UltraFlex-240 has 50% less signal loss than less flexible and less reliable RG174, RG316 or LMR100 jumpers.
A minimum bend radius of only 3/4-ths of an inch means UltraFlex-240 cables go where you want them - not where the cable wants to go!
Use this jumper to connect between N-Female antennas, amps, radios, routers, power meters, lightning suppressors, etc.
Proxicast's cable assemblies are made to exacting standards with the highest quality components and 100% tested in our ISO 9001 compliant facilities.

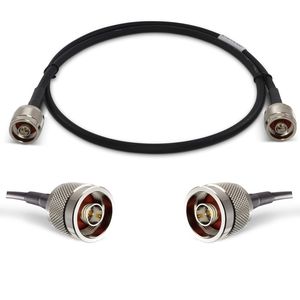

Specifications• Connector 1: N Male
• Connector 2: N Male
• Length: 3 foot
• Coax: Low-loss UltraFlex-240 (0.24 in dia)
• Min Bend Radius: 0.75 in
• Impedance: 50 Ohm
• Max VSWR: < 1.33 (0 - 3000 MHz)
• Max Insertion Loss: 0.1 dB @ 30 MHz; 0.7 dB @ 3000 MHz
• Outdoor Rated: Yes
• Op. Temp.:-40C to +85C (-40F to +185F)
See the specification sheet for complete details.
Outdoor connections must be weather-proofed. Use Proxicast's Self-Bonding Silicone Tape (part# ANT-900-002) for fast and easy connection sealing with no messy residue.
