Description
[Receiver module ] Product Model: WL101-341
WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation.
The receiver module has high sensitivity (-110dBm),Low-power performance, along with high dynamic range (greater than 60dB).
Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
Mains input voltage range: 3.0V-4.5V;
Ultra-small size of 30.25 × 8.5 × 1 (mm)
External antenna: 32CM single core wire, wound into a spiral.
[Transmitter Module] Product Model: WL102-341
WL102-341 transmitter module is UHF ASK modulated transmitters, support ASK and OOK modulation.
The transmitter module integrates an analog PLL circuit and ASK modulation circuit, with a high level of integration, etc., can be applied with a short-range wireless communications.
Operating frequency 433MHz, transmit power is greater than 11dBm.
Operating frequency: 433.92 MHz;
Mains input voltage range: 2.0V-6.0V;
Low-power consumption shutdown mode current is less than 1uA;
Transfer rate up to 20KHz;
Launch distance :20-200 meters
Size: 16* 12 * 1mm
External antenna: 25cm ordinary multi-core or single-core line
Temperature range: -45-85 °C
WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation.
The receiver module has high sensitivity (-110dBm),Low-power performance, along with high dynamic range (greater than 60dB).
Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
Mains input voltage range: 3.0V-4.5V;
Ultra-small size of 30.25 × 8.5 × 1 (mm)
External antenna: 32CM single core wire, wound into a spiral.
[Transmitter Module] Product Model: WL102-341
WL102-341 transmitter module is UHF ASK modulated transmitters, support ASK and OOK modulation.
The transmitter module integrates an analog PLL circuit and ASK modulation circuit, with a high level of integration, etc., can be applied with a short-range wireless communications.
Operating frequency 433MHz, transmit power is greater than 11dBm.
Operating frequency: 433.92 MHz;
Mains input voltage range: 2.0V-6.0V;
Low-power consumption shutdown mode current is less than 1uA;
Transfer rate up to 20KHz;
Launch distance :20-200 meters
Size: 16* 12 * 1mm
External antenna: 25cm ordinary multi-core or single-core line
Temperature range: -45-85 °C

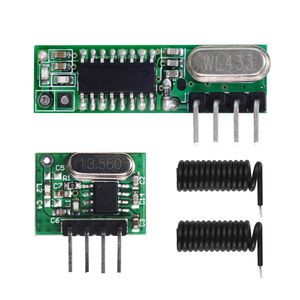

QIACHIP Superheterodyne Receiver and Transmitter kit 433Mhz RF Wireless Module with Antenna for Arduino UNO DIY Kits
Price is below average
Current Price
$5.99
Average
$7.72
Min Price
$4.68
Max Price
$10.98
Price dynamics
22%
Description
[Receiver module ] Product Model: WL101-341
WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation.
The receiver module has high sensitivity (-110dBm),Low-power performance, along with high dynamic range (greater than 60dB).
Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
Mains input voltage range: 3.0V-4.5V;
Ultra-small size of 30.25 × 8.5 × 1 (mm)
External antenna: 32CM single core wire, wound into a spiral.
[Transmitter Module] Product Model: WL102-341
WL102-341 transmitter module is UHF ASK modulated transmitters, support ASK and OOK modulation.
The transmitter module integrates an analog PLL circuit and ASK modulation circuit, with a high level of integration, etc., can be applied with a short-range wireless communications.
Operating frequency 433MHz, transmit power is greater than 11dBm.
Operating frequency: 433.92 MHz;
Mains input voltage range: 2.0V-6.0V;
Low-power consumption shutdown mode current is less than 1uA;
Transfer rate up to 20KHz;
Launch distance :20-200 meters
Size: 16* 12 * 1mm
External antenna: 25cm ordinary multi-core or single-core line
Temperature range: -45-85 °C
WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation.
The receiver module has high sensitivity (-110dBm),Low-power performance, along with high dynamic range (greater than 60dB).
Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
Mains input voltage range: 3.0V-4.5V;
Ultra-small size of 30.25 × 8.5 × 1 (mm)
External antenna: 32CM single core wire, wound into a spiral.
[Transmitter Module] Product Model: WL102-341
WL102-341 transmitter module is UHF ASK modulated transmitters, support ASK and OOK modulation.
The transmitter module integrates an analog PLL circuit and ASK modulation circuit, with a high level of integration, etc., can be applied with a short-range wireless communications.
Operating frequency 433MHz, transmit power is greater than 11dBm.
Operating frequency: 433.92 MHz;
Mains input voltage range: 2.0V-6.0V;
Low-power consumption shutdown mode current is less than 1uA;
Transfer rate up to 20KHz;
Launch distance :20-200 meters
Size: 16* 12 * 1mm
External antenna: 25cm ordinary multi-core or single-core line
Temperature range: -45-85 °C
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hi everyone yeah everyone we've got these are a transmitter and a receiver so these are 433 megahertz transmitter and receiver and they're extremely cheap on eBay you can get them very very cheap imported from China and eBay's full of them these are readily available on they're extremely common so I've done a video on this in the past and the video was very very popular and it was hugely successful really bought I mean back then I had last knowledge less equipment and the videos were last quality so I'm hoping to improve on that and hopefully give you some you know more concise info get it done quicker with a better quality video so here we go this is how to use the modules with arduino so to start with our zoom out and there's something very important which you can see that is different with my transmitter and receiver than probably what you've got from Evo and that is of course it's a
