Description
Qotom Mini PC Q190N-S01 :
Size: 135 x 128 x 38mm
The packing box contains Q190N, VESA bracket, power supply and 2 antennas (if you choose wifi).
We can provide Windows drivers and motherboard Q1900G-P user manual download link.
Warranty: One Year
Onboard CPU: Intel Celeron j1900 Processor, Quad core 2.0 GHz, up to 2.42 GHz
Processor Graphics: Intel HD Graphics
Power Consumption: 10W. Running 24/7.
LAN: RJ-45 port - Realtek RTL8111E 10/100/1000 Controller
Audio: Realtek ALC662 HD Audio
1 x Memory slot: support 1333/1600MHz DDR3L 1.35V SO-DIMM. MAX 8GB RAM. Non-ECC.
1 x mini PCIe slot is for mSATA SSD
1 x half mini PCIe slot is for WiFi module

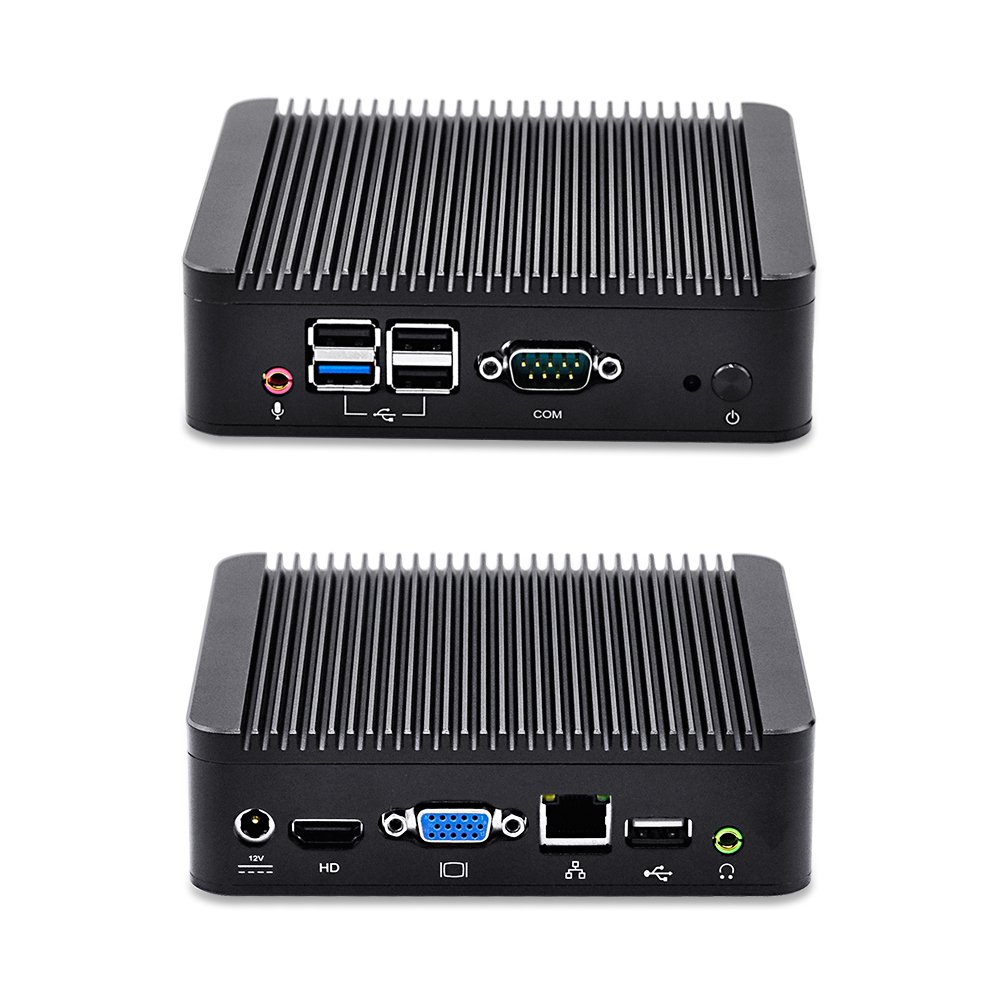

Connectors:
1 x Power switch button (Power / HDD LED)
4 x USB2.0 ports
1 x USB3.0 port
1 x Serial port
1 x 12V DC input
1 x HD Video port
1 x VGA port
1 x RJ-45 port
1 x Speaker / Microphone port
1) Mini Desktop PC Q190N apply to home, office, bank, hotel, restaurant, library, supermarket, factory, etc.
2) It will come with inactive Windows 7 for test and we don't provide any Windows license. If you prefer to Ubuntu or others, please leave a message. You also can install your favorite Operating System by yourself. Delete key into BIOS. F11 key boot from USB drive.
3) DHL Express to USA, 3 ~ 5 working days, but can not deliver to PO BOX, APO/ FPO/ DPO address. Phone number is necessary for DHL Express.
Size: 135 x 128 x 38mm
The packing box contains Q190N, VESA bracket, power supply and 2 antennas (if you choose wifi).
We can provide Windows drivers and motherboard Q1900G-P user manual download link.
Warranty: One Year
Onboard CPU: Intel Celeron j1900 Processor, Quad core 2.0 GHz, up to 2.42 GHz
Processor Graphics: Intel HD Graphics
Power Consumption: 10W. Running 24/7.
LAN: RJ-45 port - Realtek RTL8111E 10/100/1000 Controller
Audio: Realtek ALC662 HD Audio
1 x Memory slot: support 1333/1600MHz DDR3L 1.35V SO-DIMM. MAX 8GB RAM. Non-ECC.
1 x mini PCIe slot is for mSATA SSD
1 x half mini PCIe slot is for WiFi module
Connectors:
1 x Power switch button (Power / HDD LED)
4 x USB2.0 ports
1 x USB3.0 port
1 x Serial port
1 x 12V DC input
1 x HD Video port
1 x VGA port
1 x RJ-45 port
1 x Speaker / Microphone port
1) Mini Desktop PC Q190N apply to home, office, bank, hotel, restaurant, library, supermarket, factory, etc.
2) It will come with inactive Windows 7 for test and we don't provide any Windows license. If you prefer to Ubuntu or others, please leave a message. You also can install your favorite Operating System by yourself. Delete key into BIOS. F11 key boot from USB drive.
3) DHL Express to USA, 3 ~ 5 working days, but can not deliver to PO BOX, APO/ FPO/ DPO address. Phone number is necessary for DHL Express.
Qotom Mini Computer with 8GB RAM 128GB SSD WiFi Quad core Mini PC RS232 Port
Price is below average
Current Price
$191
Average
$209.67
Min Price
$191
Max Price
$219
Price dynamics
9%
Description
Qotom Mini PC Q190N-S01 :
Size: 135 x 128 x 38mm
The packing box contains Q190N, VESA bracket, power supply and 2 antennas (if you choose wifi).
We can provide Windows drivers and motherboard Q1900G-P user manual download link.
Warranty: One Year
Onboard CPU: Intel Celeron j1900 Processor, Quad core 2.0 GHz, up to 2.42 GHz
Processor Graphics: Intel HD Graphics
Power Consumption: 10W. Running 24/7.
LAN: RJ-45 port - Realtek RTL8111E 10/100/1000 Controller
Audio: Realtek ALC662 HD Audio
1 x Memory slot: support 1333/1600MHz DDR3L 1.35V SO-DIMM. MAX 8GB RAM. Non-ECC.
1 x mini PCIe slot is for mSATA SSD
1 x half mini PCIe slot is for WiFi module
Connectors:
1 x Power switch button (Power / HDD LED)
4 x USB2.0 ports
1 x USB3.0 port
1 x Serial port
1 x 12V DC input
1 x HD Video port
1 x VGA port
1 x RJ-45 port
1 x Speaker / Microphone port
1) Mini Desktop PC Q190N apply to home, office, bank, hotel, restaurant, library, supermarket, factory, etc.
2) It will come with inactive Windows 7 for test and we don't provide any Windows license. If you prefer to Ubuntu or others, please leave a message. You also can install your favorite Operating System by yourself. Delete key into BIOS. F11 key boot from USB drive.
3) DHL Express to USA, 3 ~ 5 working days, but can not deliver to PO BOX, APO/ FPO/ DPO address. Phone number is necessary for DHL Express.
Size: 135 x 128 x 38mm
The packing box contains Q190N, VESA bracket, power supply and 2 antennas (if you choose wifi).
We can provide Windows drivers and motherboard Q1900G-P user manual download link.
Warranty: One Year
Onboard CPU: Intel Celeron j1900 Processor, Quad core 2.0 GHz, up to 2.42 GHz
Processor Graphics: Intel HD Graphics
Power Consumption: 10W. Running 24/7.
LAN: RJ-45 port - Realtek RTL8111E 10/100/1000 Controller
Audio: Realtek ALC662 HD Audio
1 x Memory slot: support 1333/1600MHz DDR3L 1.35V SO-DIMM. MAX 8GB RAM. Non-ECC.
1 x mini PCIe slot is for mSATA SSD
1 x half mini PCIe slot is for WiFi module
Connectors:
1 x Power switch button (Power / HDD LED)
4 x USB2.0 ports
1 x USB3.0 port
1 x Serial port
1 x 12V DC input
1 x HD Video port
1 x VGA port
1 x RJ-45 port
1 x Speaker / Microphone port
1) Mini Desktop PC Q190N apply to home, office, bank, hotel, restaurant, library, supermarket, factory, etc.
2) It will come with inactive Windows 7 for test and we don't provide any Windows license. If you prefer to Ubuntu or others, please leave a message. You also can install your favorite Operating System by yourself. Delete key into BIOS. F11 key boot from USB drive.
3) DHL Express to USA, 3 ~ 5 working days, but can not deliver to PO BOX, APO/ FPO/ DPO address. Phone number is necessary for DHL Express.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
alright let's take this thing apart [Applause] alright so the cure them for port mini-pc let's make a notch right here and that's the that's the bottom so we have the memory here and this looks like the M SATA Drive and this is where the the wireless should be going turn it around see more view of the ports so you can see the the heatsink is not all that big but it is attached to the rest of the case which is all metal so it is acting like a giant heatsink can we yeah we can probably so I think they marked it at the screws for warranty purposes because there's a yellow residue there and it looks like they want to keep track if somebody has opened this up still a little tight so I want to make sure there's no more screws holding it together feels like there's one more there we go so this is how the the reverse side looks or this is actually the normal side except the the case is upside d
