Description
Basic Information
Lithography:14nm
Size:187x111x50mm
Power Consumption:TDP 15W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Audio Solution:Realtek ALC662 HD Audio
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Integrated Graphics:Intel HD Graphics 5500
Onboard CPU:Intel Core i3-5005U SOC Processor (Broadwell, Dual Core, 3M Cache, 2.0 GHz)
Memory:4GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x DDR3L DIMM Memory Slot, Up to 8GB Memory
Hard Disk:32GB mSATA SSD - Support 2.5" SATA SSD/HDD
Wireless:Support

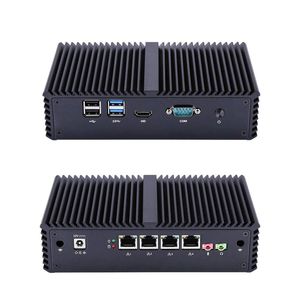

Front I/O:
1 x Power on/off Button
1 x COM (RS-232)
1 x HD Video
2 x USB 3.0
2 x USB 2.0
Internal Connectors:
1 x Minipcie Port (For mSATA SSD)
1 x Minipcie Port (For WiFi/Bluetooth Module)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA Power Connector
1 x Automatically Boot Jumper
1 x SIM Card Slot
Rear I/O:
1 x DV 12V DC Input
1 x Power LED
1 x HDD LED
4 x Intel RJ-45 Port for Gigabit LAN
1 x Speak Out Connector
1 x Mic In Connector
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
Please Note:
1) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in it. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty period is one year from you purchase.
2) Customization or printed logo can be acceptable.
Qotom-Q335G4 Mini PC Qotom Fanless Mini PC with Core i3 5005U Router AES-NI (4G RAM + 32G SSD)
Price is below average
Current Price
$214.11
Average
$230.11
Min Price
$214.11
Max Price
$232.11
Price dynamics
7%
Description
Basic Information
Lithography:14nm
Size:187x111x50mm
Power Consumption:TDP 15W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Audio Solution:Realtek ALC662 HD Audio
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Integrated Graphics:Intel HD Graphics 5500
Onboard CPU:Intel Core i3-5005U SOC Processor (Broadwell, Dual Core, 3M Cache, 2.0 GHz)
Memory:4GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x DDR3L DIMM Memory Slot, Up to 8GB Memory
Hard Disk:32GB mSATA SSD - Support 2.5" SATA SSD/HDD
Wireless:Support
Front I/O:
1 x Power on/off Button
1 x COM (RS-232)
1 x HD Video
2 x USB 3.0
2 x USB 2.0
Internal Connectors:
1 x Minipcie Port (For mSATA SSD)
1 x Minipcie Port (For WiFi/Bluetooth Module)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA Power Connector
1 x Automatically Boot Jumper
1 x SIM Card Slot
Rear I/O:
1 x DV 12V DC Input
1 x Power LED
1 x HDD LED
4 x Intel RJ-45 Port for Gigabit LAN
1 x Speak Out Connector
1 x Mic In Connector
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
Please Note:
1) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in it. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty period is one year from you purchase.
2) Customization or printed logo can be acceptable.
