Description
Introduction:

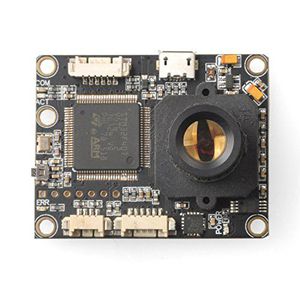

- PX4Flow is an optical flow smart camera. It has a native resolution of 752x480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.
Hardware Specifications:
- STM32F405, 168 MHz Cortex M4F (GFLOPS 128 + 64 KB RAM)
- 752 * 480 MT9V034 image sensor, L3GD20 3-axis Gyro
- 16 mm M12 lens (IR block filter)
- Size 45.5 mm x 35mm
- Power consumption 115mA / 5V
Package list:
Only Optical Flow meter (without Ultrasonic Module)
- PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera x 1
- Connecting cable x 1
Seriously Tip:
optical flow sensor is not a hand-play PIX peripherals , if you're not sure if you can complete the seting by yourself separately or not , please carefully orders, do not waste time and money.
- PX4Flow is an optical flow smart camera. It has a native resolution of 752x480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.
Hardware Specifications:
- STM32F405, 168 MHz Cortex M4F (GFLOPS 128 + 64 KB RAM)
- 752 * 480 MT9V034 image sensor, L3GD20 3-axis Gyro
- 16 mm M12 lens (IR block filter)
- Size 45.5 mm x 35mm
- Power consumption 115mA / 5V
Package list:
Only Optical Flow meter (without Ultrasonic Module)
- PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera x 1
- Connecting cable x 1
Seriously Tip:
optical flow sensor is not a hand-play PIX peripherals , if you're not sure if you can complete the seting by yourself separately or not , please carefully orders, do not waste time and money.
QWinOut PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera for PX4 PIX PIXHAWK Flight Control System
