Rackmount.IT Rack Mount Kit for Barracuda F12 / F80 Rev.B Firewall (RM-BC-T2)

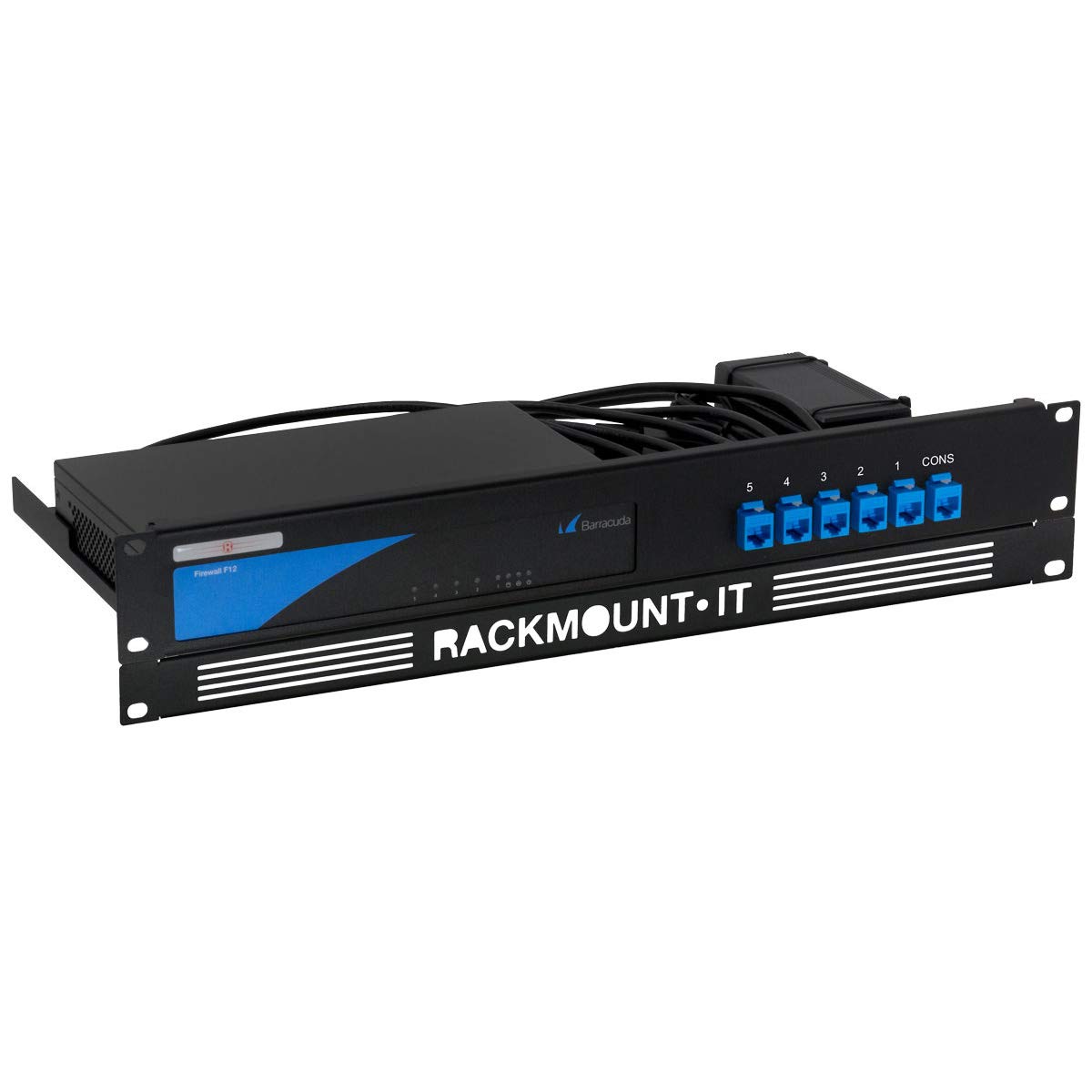

[Music] today we are going to install the barracuda f12 into the rm bc t2 for rackmount it the installation for the f-80 is the same as the f-12 you will need the barracuda f12 appliance with power cord and the rack mount kit let's open the box and see what's inside included in the box is the 19 inch barracuda rack mount kit with front plate six cat 6 cables three zip ties one bolt an allen key front port labels and installation instructions we have the barracuda appliance and what we want to do is place the appliance in the left hand side of the rack with the connection facing towards the back use the provided bolt to secure the appliance to the rack mount kit once the bolt is tight the appliance is secured next we are going to install the power supply using the zip ties provided with the rack mount kit place two of these zip ties through the holes on the rack next you will place the p
