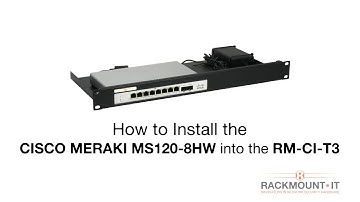

Rackmount.IT | RM-CI-T3 | Rack Mount Kit for Cisco Meraki 120-8-HW / 120-8LP-HW RM-CI-T3

[Music] today we are going to install the cisco meraki ms-128 hw into the rmci t3 from rackmount it you will need the cisco meraki appliance with power cord and the rack mount kit let's open the box and see what's inside included in the box is the 19-inch rack mount kit three zip ties two nuts and installation instructions on the appliance itself fully slide the mounting slides outward so the holes line up with the upright threaded pins place the appliance in the left hand side of the rack with the connections facing towards the front screw the nuts on the threaded pins the appliance is now secure next we are going to install the power supply using the zip ties provided with the rack mount kit place two of the zip ties through the holes on the rack next you will place the power supply over the zip ties then tighten the zip ties over the power supply make sure to tighten as much as possi
