Description
Overview

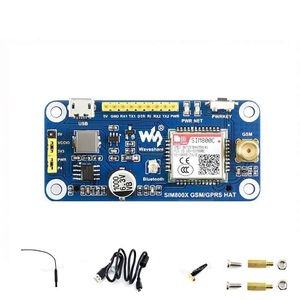

This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc. Bluetooth 3.0, supports data transferring through Bluetooth UART interface, for connecting host control boards like Arduino/STM32 Onboard voltage level translator, 3.3V by default, switch to 5V via jumper 2x LEDs for indicating the module working status SIM card slot for 1.8V/3V SIM card Baudrate auto detection (1200bps ~115200bps) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: GSM 11.14 Release 99 Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
PACKAGE CONTENT
1. SIM800C GSM/GPRS HAT x1
2. GSM Antenna x1
3. Bluetooth Antenna x1
4. USB type A plug to micro plug cable x1 5. RPi screws pack (2pcs) x1
This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
Features
PACKAGE CONTENT
1. SIM800C GSM/GPRS HAT x1
2. GSM Antenna x1
3. Bluetooth Antenna x1
4. USB type A plug to micro plug cable x1 5. RPi screws pack (2pcs) x1
Raspberry Pi GSM/GPRS/Bluetooth HAT Based on SIM800C Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email for Band GSM 850/EGSM 900/DCS Compatible with Pi 2B/3B/3B+/4B/Zero/Zero W,Jetson Nano
Price is below average
Current Price
$27.12
Average
$27.75
Min Price
$27.12
Max Price
$28.92
Price dynamics
2%
Description
Overview
This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc. Bluetooth 3.0, supports data transferring through Bluetooth UART interface, for connecting host control boards like Arduino/STM32 Onboard voltage level translator, 3.3V by default, switch to 5V via jumper 2x LEDs for indicating the module working status SIM card slot for 1.8V/3V SIM card Baudrate auto detection (1200bps ~115200bps) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: GSM 11.14 Release 99 Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
PACKAGE CONTENT
1. SIM800C GSM/GPRS HAT x1
2. GSM Antenna x1
3. Bluetooth Antenna x1
4. USB type A plug to micro plug cable x1 5. RPi screws pack (2pcs) x1
This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
Features
PACKAGE CONTENT
1. SIM800C GSM/GPRS HAT x1
2. GSM Antenna x1
3. Bluetooth Antenna x1
4. USB type A plug to micro plug cable x1 5. RPi screws pack (2pcs) x1
